Closing a dns_bypass Finding: ZBF Policy Chains, a Resilience Tradeoff, and an Open-Source MCP Tool

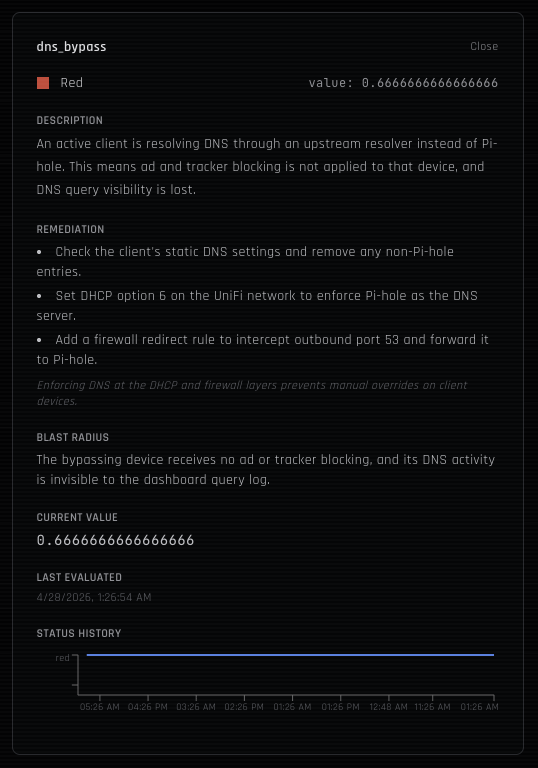

The Security tab on my home network mission control dashboard had a red dns_bypass card sitting at 0.667. Seventeen of twenty-six active UniFi clients were covered by Pi-hole's top talkers list. Nine were not. The signal was right.

Click to enlarge

The signal computes covered_unifi_clients / total_unifi_clients against Pi-hole's top-25 client list. Two thirds isn't "noisy alert" territory. That's a real gap. So I sat down to close it, and the work turned into a four-part story: validating the metric, a design tradeoff I'm still going to defend, a ZBF policy chain remediation, and a brand-new tool surface for my open-source UniFi MCP.

The Finding#

The card pulls from a YAML rule set. The signal evaluator is straightforward: pull the active client list from UniFi, pull the top-25 client list from Pi-hole, intersect by MAC, divide. Anything below 0.95 turns the card amber. Anything below 0.7 turns it red. Mine wasn't borderline.

I trust the dashboard, but the first move on any red signal is "verify the metric is real, not an artifact." So I went back to the source data.

Validating the Metric#

I pulled the active UniFi client list (twenty-six entries) and cross-referenced against Pi-hole's top-25 client list. Seventeen MACs intersected. Nine didn't. That works out to 17/26 = 0.654, which lines up cleanly with the dashboard's 0.667 within polling jitter. The signal wasn't lying.

The interesting part was the why. Two distinct root causes, each on a different subnet:

1. Default network was handing out four DNS servers. DHCP option 6 carried 172.16.27.227 (Pi-hole), 9.9.9.9 (Quad9), 1.1.1.1 (Cloudflare), and 8.8.8.8 (Google). Clients round-robin across the list, so roughly three out of four queries skipped Pi-hole entirely and went straight to a public resolver.

2. VLAN 2 (OnboardNetwork) and VLAN 3 (RoamingQuarantine) couldn't reach Pi-hole at all. Both networks had dhcpd_dns_enabled: false and network_isolation_enabled: true. The first meant the controller never advertised a resolver via DHCP. The second meant UniFi auto-generated an Isolated Networks ZBF BLOCK rule at index 30000 that dropped any traffic from those VLANs to other internal networks, including 172.16.27.227. Even if a client guessed the right DNS server, the firewall would've killed the query.

That distinction mattered for the remediation plan, because the fixes are not symmetric.

The Design Tradeoff#

Here's where the post gets philosophical for a minute.

The clean answer is "remove the public resolvers from Default's DHCP option 6, point everything at Pi-hole, watch the card turn green." That's what the metric wants. It's also a worse network for me to live on.

If Pi-hole goes down, every device on the Default subnet loses DNS. No retry, no graceful fall-through. My laptops, my phones, my smart speakers, my partner's work machine: all dark until I notice and intervene. For a residential network where the operator's also the only on-call engineer, that's a poor failure mode.

The DNS option 6 list is a graceful-degradation mechanism. Most clients honor the order, hit Pi-hole first, and fall through to Quad9 only if Pi-hole stops responding. It costs me dashboard coverage, but it buys me an uptime guarantee on the most important service in the house.

So the call I made was deliberately asymmetric:

• Default subnet: keep the public DNS fallbacks. Accept that this part of the dns_bypass signal'll stay non-green. The dashboard isn't wrong, it just doesn't model resilience tradeoffs, and that's a feature ask for the dashboard, not a fix to deploy at the network layer.
• VLAN 2 and VLAN 3: close them fully. Both are isolated trust tiers (onboarding for new devices, quarantine for roaming clients). Resilience matters less, observability matters more. Every query on those VLANs should hit Pi-hole.

This is the pivot point in the post: I'm not going to chase a green card. I'm going to close VLAN 2 and VLAN 3, document the Default-subnet decision, and move on.

Phase A: Snapshot Before Touching Anything#

Before changing any network or firewall config I snapshotted the current state to a JSON file. The path was ~/.claude/state/homenet-snapshots/dns-bypass-pre-20260428T032316Z.json. Networks, ZBF zones, ZBF policies, DHCP option 6 contents, the works. It wasn't glamorous, but it was the rollback contract: if anything broke, I had a one-shot path back to "before."

Phase C: ZBF Allow Exceptions for VLAN 2 and VLAN 3#

This is where the work started. The goal: let VLAN 2 and VLAN 3 clients reach 172.16.27.227:53 even though network_isolation_enabled: true on both networks generates a blanket BLOCK to other internal subnets.

ZBF policies in UniFi evaluate in ascending index order. First match wins. The auto-generated Isolated Networks rule sits at index 30000. So an ALLOW rule placed at any index lower than 30000 carves a hole through the isolation policy, but only for the source / destination / port tuple specified.

I added two ALLOW rules, one per VLAN, both at index 10000:

• Allow OnboardNetwork DNS to Pi-hole: src VLAN 2, dst 172.16.27.227, dst port 53 (UDP+TCP)
• Allow RoamingQuarantine DNS to Pi-hole: src VLAN 3, dst 172.16.27.227, dst port 53 (UDP+TCP)

Both rules used the existing chris2ao/unifi-mcp create_zbf_policy tool. The tool wraps /v2/api/site/{site}/firewall-policies and is the right surface for port-level filtering. (Foreshadowing.)

After the ALLOW rules went in, I confirmed VLAN 2 and VLAN 3 clients could resolve through Pi-hole. The isolation guarantee for everything else, lateral movement to the Default subnet, the IoT VLAN, the camera VLAN, was untouched. ZBF first-match-wins semantics did exactly what I'd asked for.

Phase D: DHCP Now Points at Pi-hole#

With the firewall holes carved, I flipped DHCP on the same two VLANs:

• dhcpd_dns_enabled: true
• dhcpd_dns_1: 172.16.27.227

This was a one-line change per VLAN through the UniFi MCP update_network tool. New leases get Pi-hole as the resolver immediately. Existing leases will refresh on lease renewal (default 24h on this controller), or sooner if a client reconnects. Within ten minutes of the change, the next-hop test from a VLAN 3 client showed Pi-hole answering.

Phase E2: Block the Public-DNS Escape Hatch#

ALLOW + DHCP gets me to "VLAN 2 and VLAN 3 use Pi-hole by default." It doesn't stop a sufficiently motivated device from hand-configuring 1.1.1.1 and bypassing Pi-hole anyway. (Smart TVs are notorious for this. Some IoT devices ignore DHCP-supplied DNS entirely.)

So I added two BLOCK rules at index 10001:

• Block VLAN2 outbound DNS to internet: src VLAN 2, dst ANY, dst port 53 (UDP+TCP), action DENY
• Block VLAN3 outbound DNS to internet: src VLAN 3, dst ANY, dst port 53 (UDP+TCP), action DENY

Index 10001 sits below the index-10000 ALLOW rules. A query to Pi-hole still matches the ALLOW first. Anything else, Quad9, Cloudflare, Google, AdGuard, you name it, doesn't get out.

Click to enlarge

The full evaluation chain on those two VLANs now looks like this:

There's one honest caveat: this only blocks classic UDP/TCP port 53. DNS-over-HTTPS rides on TCP 443 and is indistinguishable from any other HTTPS traffic without deeper inspection. A client deliberately using DoH to a public resolver gets through. Closing that gap is a separate piece of work involving SNI-level filtering or a managed device profile, and it isn't on the critical path for the dns_bypass signal.

The Tooling Gap#

Here is where the post pivots into engineering.

While building the BLOCK rules, my first instinct was to use UniFi Traffic Rules. They sound like the right surface: "rules that block traffic on a network." The Web UI exposes them under Settings, Security, Traffic Rules. They support schedules, bandwidth limits, target devices. The chris2ao/unifi-mcp repo didn't have a wrapper for them yet, so I figured: build the wrapper, use the wrapper, ship it.

That's what I did. And then I discovered Traffic Rules can't block by destination port at all.

Attempt One: Traffic Rules#

I built six tools wrapping the v2 endpoint /proxy/network/v2/api/site/{site}/trafficrules: list_traffic_rules, get_traffic_rule, create_traffic_rule, update_traffic_rule, delete_traffic_rule, toggle_traffic_rule. Thirteen new tests. All green.

Then I tried to construct a BLOCK rule for "src VLAN 2, port 53, action DENY." There's no ports field in the schema. There's no dst_port. There's no service. The closest thing is matching_target, which takes one of INTERNET, DOMAIN, IP, REGION, APP_CATEGORY, or INTERNAL, and none of those let you scope to a single port.

I could build "BLOCK all internet traffic from VLAN 2" (matching_target = INTERNET). I could build "BLOCK traffic to a specific IP" (matching_target = IP). I couldn't build "BLOCK port 53 to internet, allow everything else." That's the rule I needed.

The pivot was easy in hindsight: I was already using ZBF firewall-policies for the ALLOW rules at index 10000. ZBF does support port-level filtering. I dropped the Traffic Rules approach for this remediation and used ZBF for the BLOCK rules at index 10001.

But the tools I built weren't wasted. UniFi Traffic Rules are still the right surface for a different class of rule (kid controls, app-category blocks, scheduled outages), and the public MCP didn't have them. So I shipped the wrappers anyway.

v0.4.0: traffic_rules Tools and a DELETE Fix#

The work landed as chris2ao/unifi-mcp v0.4.0. Six new tools, thirteen new tests, all 225 unit tests passing. Public PR is chris2ao/unifi-mcp#4, merged as squash commit 9e5d28f. The release tag is v0.4.0.

The version skipped 0.3.x because tags v0.3.0 and v0.3.1 already existed on the public remote, created from the 0.2.0 / 0.2.1 release branches by mistake. Bumping straight to 0.4.0 sidesteps the collision and resyncs the version with the highest published tag.

There was one subtle bug fix that came out of the Traffic Rules work and is worth flagging. The v2 DELETE /trafficrules/<id> endpoint returns HTTP 200 with no Content-Type header and an empty body. The previous auth.client._request implementation treated empty 2xx as UNEXPECTED_RESPONSE, so calling delete_traffic_rule would surface a delete failure even though the rule had been successfully removed.

The fix was five lines:

# Before
if not response.text:
    return error("UNEXPECTED_RESPONSE", "Empty response body")

# After
if not response.text:
    # UniFi v2 DELETE endpoints sometimes return 200 with empty body;
    # treat as success.
    return {}

Generally useful for any v2 endpoint where the controller decides to skip the body on a successful mutation.

Schema Discoveries#

The Traffic Rules schema had four other gotchas worth documenting publicly. The CHANGELOG carries the canonical list; this post puts them in narrative form because they are real teaching moments.

The label field is description, not name. Every other UniFi v1 endpoint I've wrapped uses name. Traffic Rules use description. Pass name and the controller silently drops it on persist. Your rule shows up in the UI with an empty label. The first time I noticed this I assumed I had a serializer bug.

There's no ports field, period. Already covered above. Worth repeating because it's the gotcha that drove the pivot away from Traffic Rules for this whole story.

target_devices doesn't honor an exclude flag. I tried {"exclude": true} to express "all devices on this network except this one." UniFi normalizes the field away on persist. You can target devices, but you can't anti-target them in a single rule.

GET /trafficrules/{id} returns 405. The collection endpoint accepts GET. The single-resource endpoint doesn't. I worked around it in get_traffic_rule and toggle_traffic_rule by fetching the collection and filtering locally, which is cheap because the residential collection size never gets above a couple dozen rules.

For BLOCK ZBF policies specifically, create_allow_respond must be false. This one bit me on the index-10001 BLOCK rules. The controller rejects with api.err.FirewallPolicyCreateRespondTrafficPolicyNotAllowed if you pass true or omit the field on a BLOCK action. ALLOW policies are happy with true. BLOCK policies require false. The error message is at least direct about it.

What Closed and What Didn't#

After Phase E2, I let the network bake for an hour and re-pulled the dashboard.

VLAN 2 clients: all hitting Pi-hole. Top-25 list shows them. covered_unifi_clients for that subnet went from zero to full coverage.

VLAN 3 clients: same.

Default subnet: still partial coverage by design. The Quad9 / Cloudflare / Google entries in DHCP option 6 are still in place. About half of Default-subnet queries land on Pi-hole, the other half land on a public resolver. The dashboard dns_bypass card moved from 0.667 to roughly 0.85, which is amber rather than red. Good enough for a card I'm intentionally leaving non-green.

Lessons Learned#

What's Next#

The dashboard is in a state I can defend: VLAN 2 and VLAN 3 fully closed, Default-subnet card amber on purpose, with a documented tradeoff. The public MCP picked up six new tools and one cross-cutting bug fix. The CHANGELOG carries the schema gotchas for the next person.

A few open threads:

• DoH/DoT bypass is the next rung up the threat model. It needs SNI-level inspection or a managed-device profile, neither of which is configured today.
• The dashboard signal would benefit from a "configured fallback" exception list so a deliberate option-6 fallback doesn't look like a bypass. That's a dashboard feature, not a network change.
• The legacy firewall rules on this controller still have a few orphaned entries from earlier experiments. ZBF is the strategic surface; the legacy rules are scheduled for cleanup the next time I'm in there.

The unifi-mcp release notes are at github.com/chris2ao/unifi-mcp/releases/tag/v0.4.0. The PR with the full diff is at chris2ao/unifi-mcp#4. The blog config repo is at github.com/chris2ao/cryptoflexllc.

Resources#

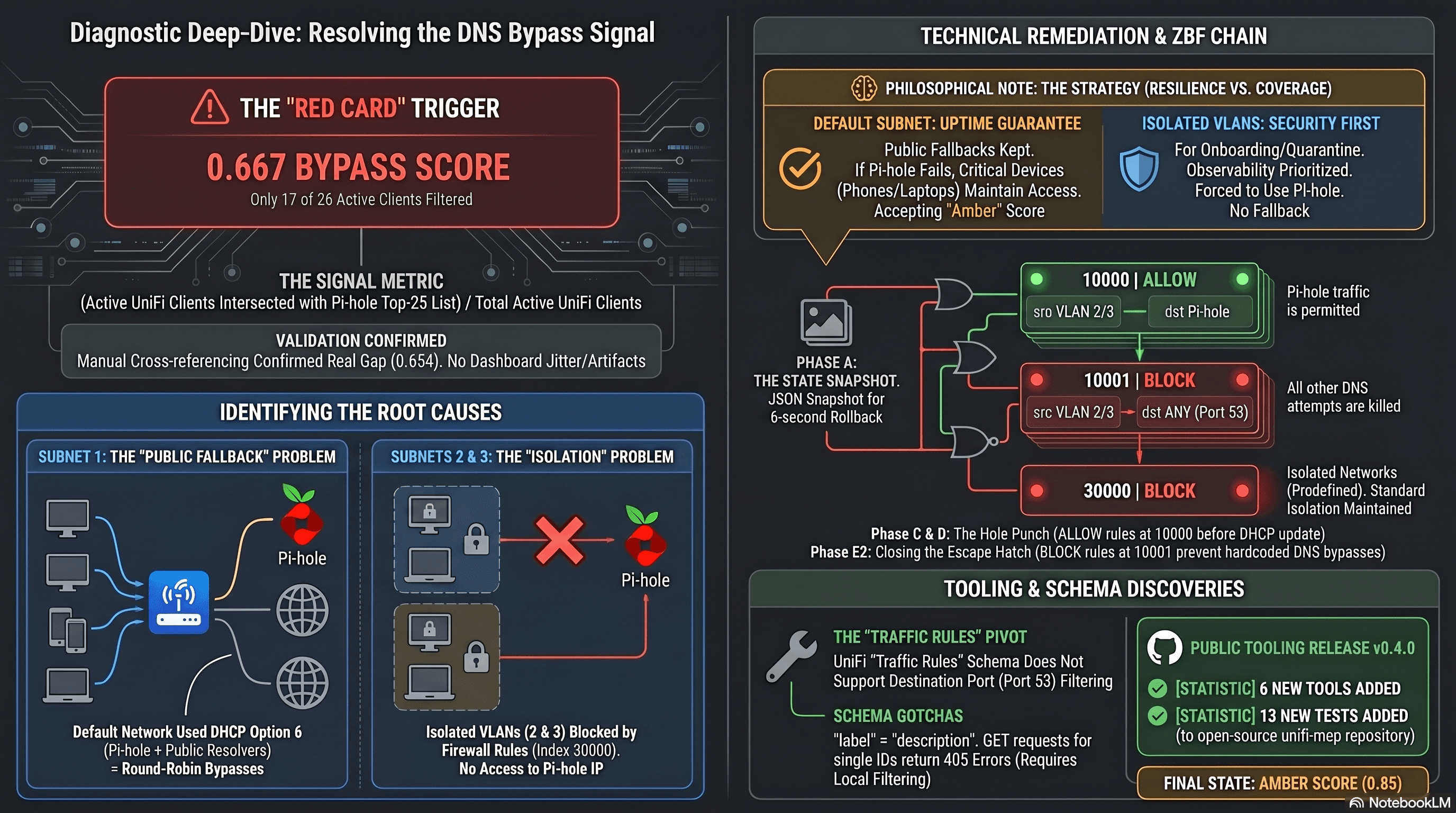

• Diagnostic deep-dive: resolving the DNS bypass signal (infographic): the full one-page walkthrough used in this post.
• Closing a dns_bypass finding (slide deck): twelve-slide narrative version of the same material.
