Consolidating Three Pi-hole MCPs into One: chris2ao/pihole-mcp

5 existing Pi-hole MCP servers. 1 actively maintained. 10 real gaps I cared about. 28 tools consolidated into one Python server. Shipped public in a single session.

That is the arc of chris2ao/pihole-mcp, the second MCP server I have built and open-sourced in two weeks. The first was chris2ao/unifi-mcp, covered in Building a Custom UniFi MCP and dogfooded in the previous post in this series. This one is about what happens when you already have a battle-tested toolchain and need a second integration that matches it.

The short version: I did not build from zero, and I did not just install someone else's. I used /deep-research to scan the landscape first, then made a deliberate build decision based on what the research found.

Click to enlarge

The Setup#

A quick glossary so the rest of this post makes sense.

The existing state of my home lab, before this work:

• Pi-hole runs as the LAN DNS resolver behind the UDM Pro, handling every client DNS query and providing per-hostname blocking that the UDM itself does not.
• UniFi DPI classifies traffic for me at the gateway using TLS SNI inspection, not DNS responses.
• chris2ao/unifi-mcp exposes 103 UniFi tools to Claude Code via FastMCP + httpx + Pydantic v2.

What was missing: Claude Code had no read path into Pi-hole. If I wanted to check "which devices are generating the most blocked queries right now?" I had to curl the Pi-hole v6 API by hand. That got annoying fast.

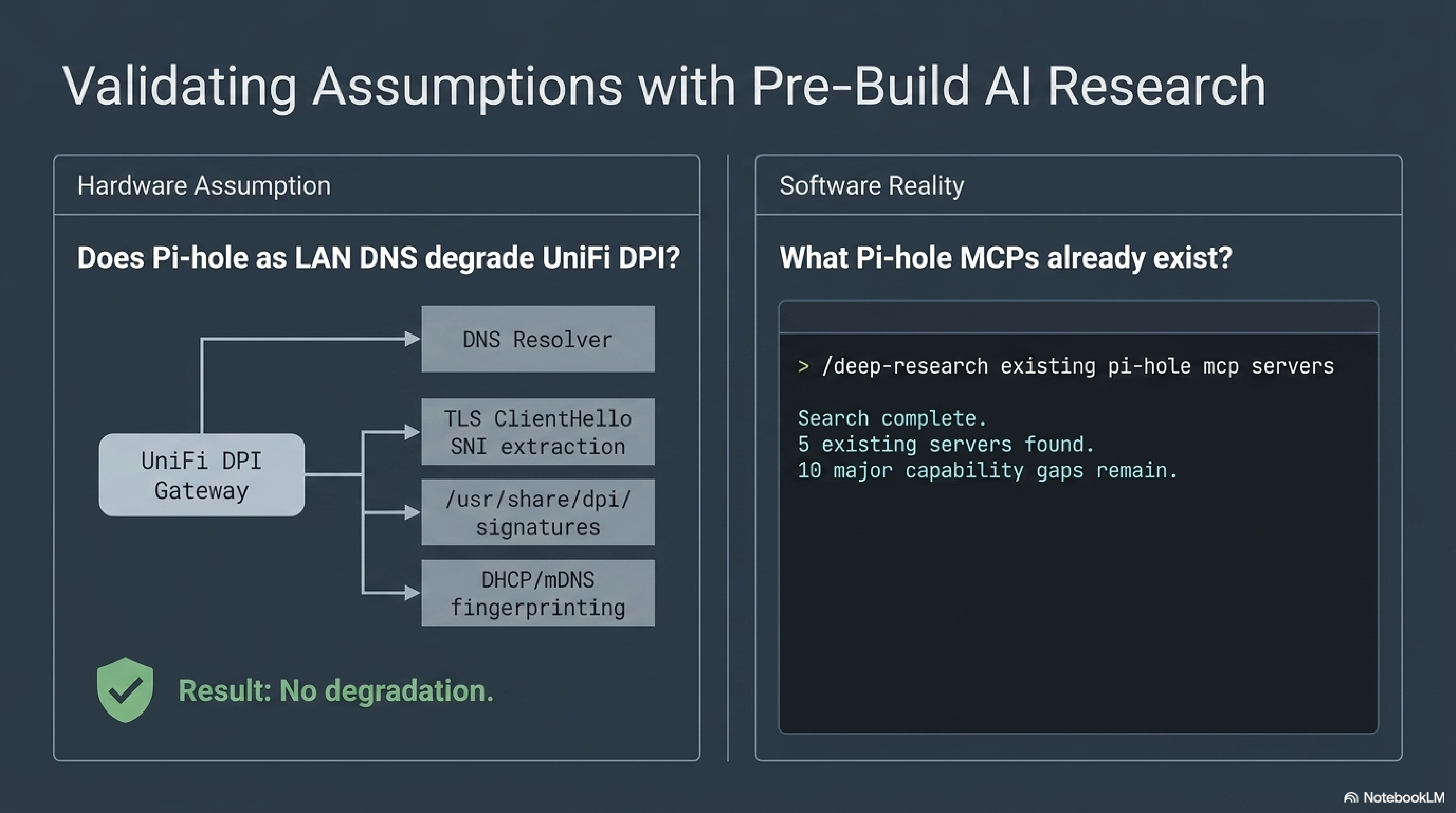

Two Research Questions Before Any Code#

The first move was not to build. It was to use /deep-research to answer two questions in parallel.

Question A: Does Pi-hole as LAN DNS Degrade UniFi DPI?#

This one I had quietly worried about for months. If my UDM's DPI classifies application traffic partly from DNS, and all my client DNS now terminates at Pi-hole, does DPI accuracy suffer?

The research agent searched Ubiquiti community threads, the Pi-hole discourse, r/Ubiquiti, r/pihole, r/homelab, and vendor docs. The answer was clear: no. UniFi DPI on a UDM Pro is driven by:

1. TLS ClientHello SNI extraction. The hostname in the TLS handshake is plaintext. UniFi reads it there to classify encrypted flows.
2. A proprietary application and IP signature database in /usr/share/dpi/. App IDs, category maps, IP ranges, behavioral fingerprints.
3. Device fingerprinting via DHCP hostname, mDNS, passive OS fingerprinting, and admin-configured local DNS, independent of outbound DNS responses.

DNS is not a primary input to DPI classification. What UniFi loses when Pi-hole sits in front of it: visibility into Pi-hole's upstream queries (the UDM still sees the client-to-Pi-hole flows, but cannot attribute the Pi-hole-to-upstream queries back to the originating client). This does not materially affect SNI-based classification.

Zero community reports of DPI accuracy degradation from running Pi-hole. Multiple converging sources. Question A closed with high confidence.

Question B: What Pi-hole MCPs Already Exist?#

The second query scanned GitHub, npm, PyPI, and Docker Hub for Pi-hole MCP servers. Five turned up:

Only one was actively maintained in 2026. The combined tool surface across all five still left 10 meaningful gaps: adlist CRUD, group management, client-to-group policy, DHCP, regex filter CRUD, Teleporter backup, per-VLAN analytics, CNAME CRUD (only sbarbett had this), webhook subscriptions, top-level config.

Click to enlarge

The Decision: Consolidate, Don't Adopt and Don't Extend#

With both research threads done, I had a three-way choice.

Option 1: Adopt the active upstream. Install aplaceforallmystuff/mcp-pihole, use its 14 tools, live with the gaps.

Option 2: Fork and extend. Take the active upstream, add local DNS records from sbarbett and log tools from cwdcwd, PR back upstream if the maintainer accepts.

Option 3: Consolidate. Start a new repo that cherry-picks the useful tools from all three upstreams and matches my existing Python stack.

I chose option 3 for one reason: toolchain uniformity. My UniFi MCP is Python + FastMCP + httpx + Pydantic v2 + pytest + respx + uv + hatchling. Every secret lives in ~/.claude/secrets/secrets.env. Every wrapper lives in ~/.claude/scripts/. Every registration is the same shape in ~/.claude.json.

If I adopted a TypeScript upstream, I would now be maintaining two separate stacks for two MCP servers that do conceptually identical work: wrap a REST API and expose it as tools. Two lockfiles. Two test frameworks. Two sets of lint rules. Two deployment paths.

Consolidation was a one-day cost to avoid a forever tax.

The other reason: the three actively-worth-copying tool sets were split across three repos. aplaceforallmystuff had the best general-purpose surface (stats, blocking, domain lists). sbarbett had the richest query-log filters and the only local DNS record support. cwdcwd had the log-tail and forward-destination tools. No single upstream gave me all three. Extending one of them would pull in roughly as much foreign code as starting fresh.

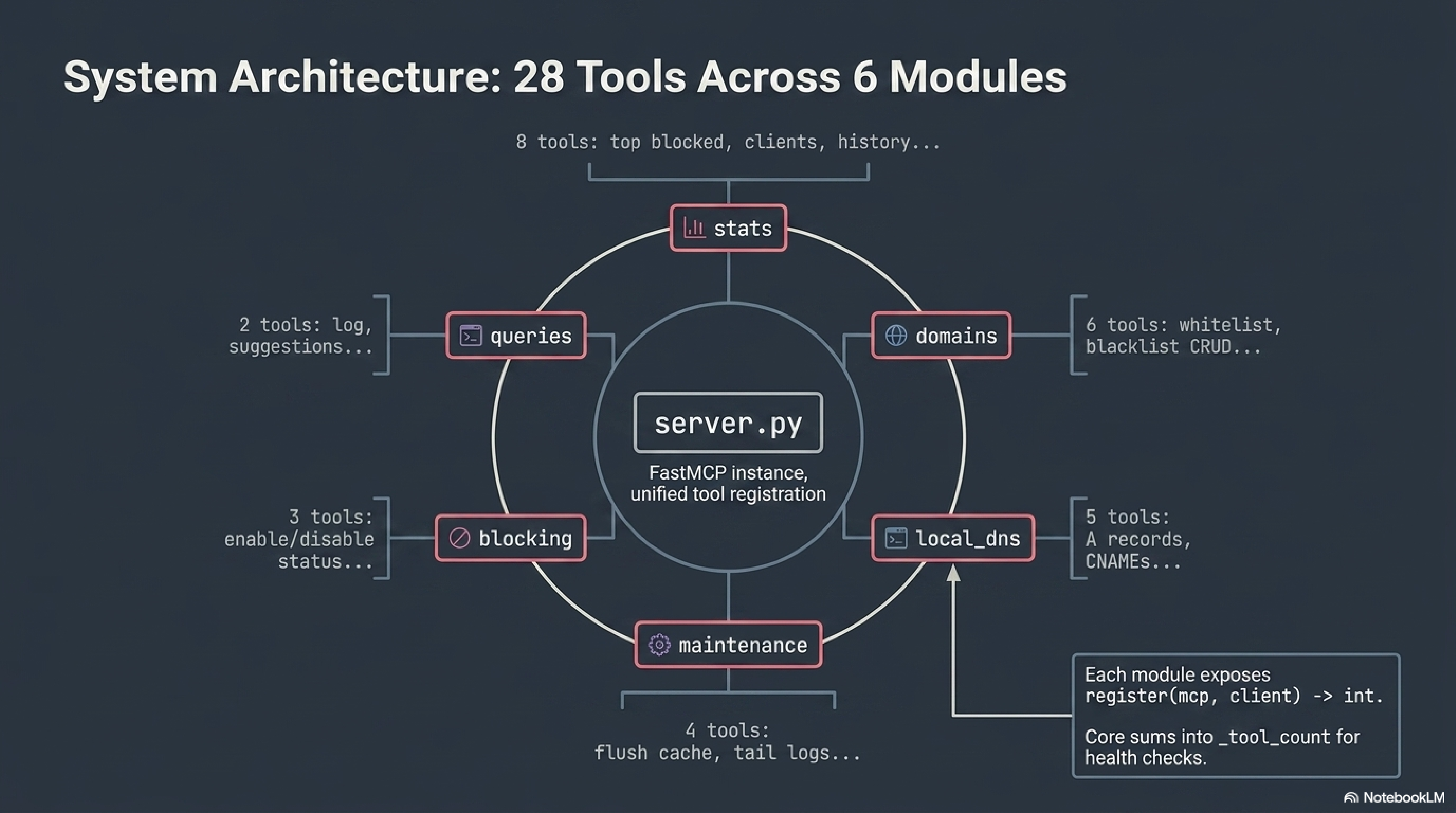

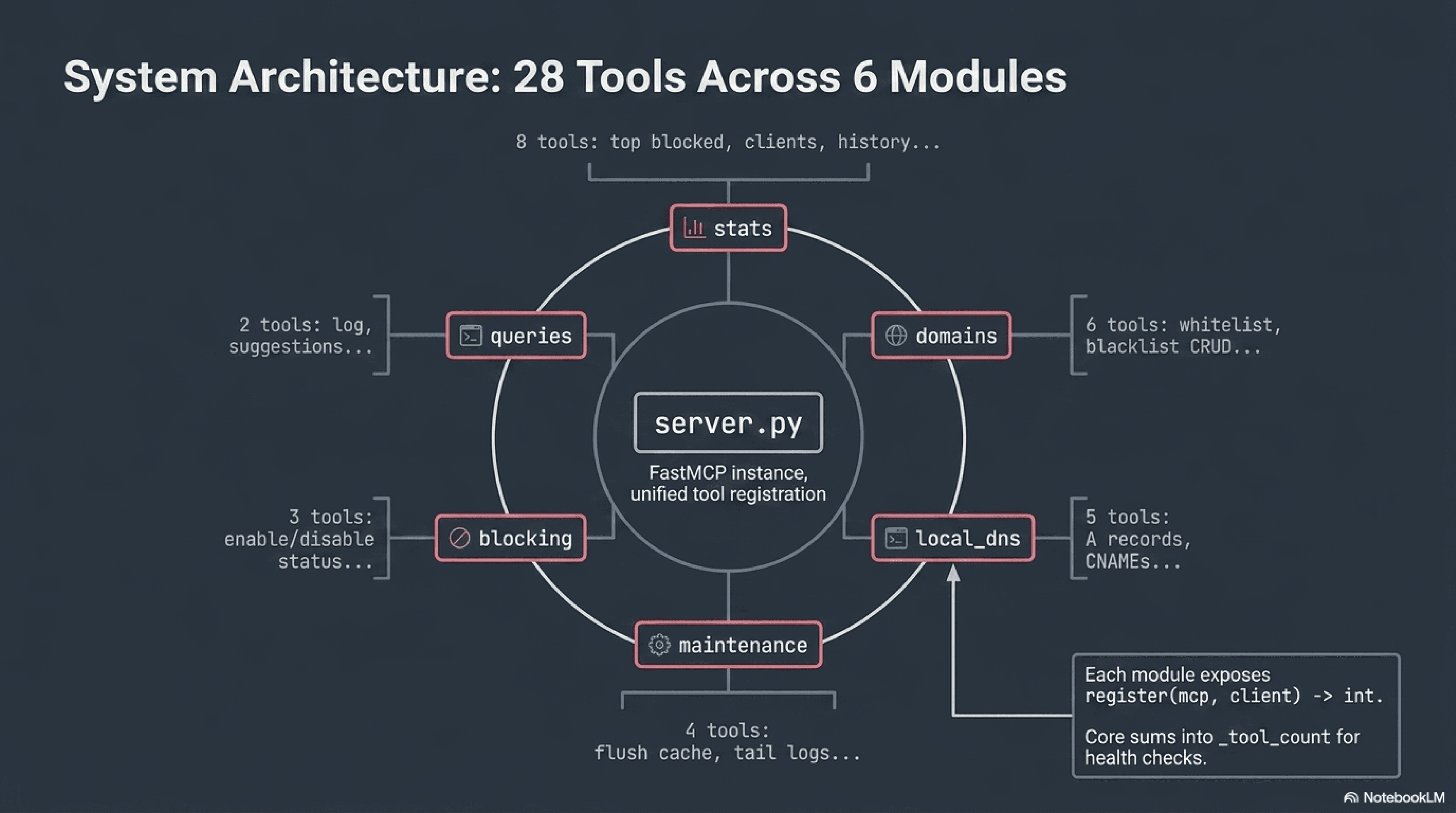

What Got Built: 28 Tools Across 6 Modules#

The result is a single Python 3.12+ package, pihole_mcp, registered with FastMCP as the pihole server.

src/pihole_mcp/
├── __init__.py
├── __main__.py          # python -m pihole_mcp entry
├── server.py            # FastMCP instance, tool registration
├── config.py            # PiholeConfig via pydantic-settings
├── client.py            # PiholeClient: auth, session, request
├── errors.py            # PiholeAuthError, PiholeAPIError
└── tools/
    ├── stats.py         # 8 tools
    ├── queries.py       # 2 tools
    ├── blocking.py      # 3 tools
    ├── domains.py       # 6 tools
    ├── local_dns.py     # 5 tools
    └── maintenance.py   # 4 tools

Every tool module exposes a single register(mcp, client) -> int function that decorates tools with @mcp.tool() and returns the count it registered. server.py sums the counts into _tool_count for health checks. Total: 28 tools, plus a meta server_info().

Full per-tool endpoint mapping lives in docs/plans/consolidated-tool-map.md in the repo.

Example: get_query_log Filters#

This is one of the richer tools. It composes straight onto Pi-hole's /queries endpoint.

@mcp.tool()
async def get_query_log(
    length: int = 100,
    from_ts: int | None = None,
    until_ts: int | None = None,
    domain: str | None = None,
    client_ip: str | None = None,
    upstream: str | None = None,
    cursor: str | None = None,
) -> dict:
    """Return recent query log entries with optional filters."""
    params = {"length": length}
    if from_ts is not None: params["from"] = from_ts
    if until_ts is not None: params["until"] = until_ts
    if domain is not None: params["domain"] = domain
    if client_ip is not None: params["client"] = client_ip
    if upstream is not None: params["upstream"] = upstream
    if cursor is not None: params["cursor"] = cursor
    return await client.get("/queries", params=params)

In practice the shape looks like this when Claude Code calls it:

get_query_log(length=200, client_ip="192.168.1.50", domain="*.doubleclick.net")

And the response arrives as the raw Pi-hole JSON, ready for the model to summarize into prose.

Click to enlarge

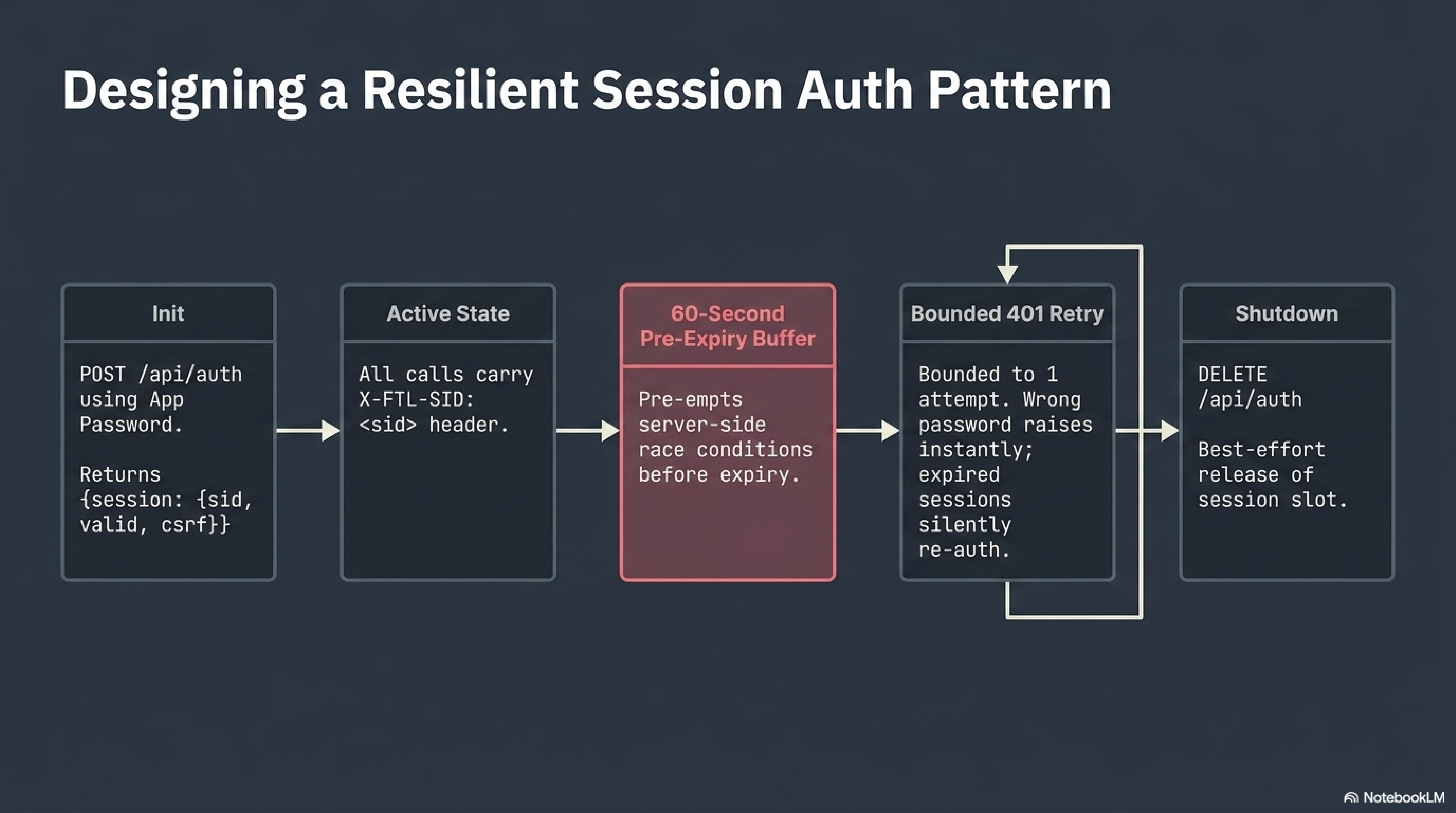

The Pi-hole v6 Session Auth Pattern#

The auth model is the part of this that was worth getting right. Pi-hole 6 (Feb 2025 and later) moved from basic auth to a session-based scheme. Every client has to do this:

1. POST /api/auth with {"password": "<app-password>"}. The response is {session: {sid, valid, csrf}}.
2. Every subsequent call carries X-FTL-SID: <sid> as a header.
3. If a call returns 401, the session is gone. Re-auth and retry.
4. On shutdown, DELETE /api/auth releases the session slot server-side.

The tricky part is the 401 retry and the near-expiry pre-auth. Here is what the client does, stripped down:

class PiholeClient:
    _REFRESH_BUFFER_SECONDS = 60

    async def _ensure_session(self) -> str:
        now = time.time()
        if not self._sid or now >= (self._sid_expires_at - self._REFRESH_BUFFER_SECONDS):
            await self._authenticate()
        return self._sid

    async def request(self, method, path, *, params=None, json=None):
        sid = await self._ensure_session()
        resp = await self._http.request(
            method, path, params=params, json=json,
            headers={"X-FTL-SID": sid},
        )
        if resp.status_code == 401:
            self._sid = None
            sid = await self._ensure_session()
            resp = await self._http.request(
                method, path, params=params, json=json,
                headers={"X-FTL-SID": sid},
            )
        if resp.status_code >= 400:
            raise PiholeAPIError(resp.status_code, f"{method} {path} failed", ...)
        return resp.json()

Three things matter here:

1. The 60-second buffer pre-empts race conditions around server-side expiry. If my local clock says "40 seconds left" but the server has already garbage-collected the session, I'd hit 401 on every request until the retry. Refreshing at 60 seconds before the local expiry eliminates that window for typical clock skew.
2. The 401 retry is bounded to one attempt. A genuinely wrong password raises immediately instead of looping. A genuinely expired session re-auths and recovers. A persistently broken Pi-hole raises after the retry.
3. Shutdown is best-effort. close() tries DELETE /api/auth but swallows any exception. The session will expire server-side anyway. No reason to fail shutdown on a best-effort cleanup.

Click to enlarge

The Local DNS Read-Modify-Write Quirk#

Pi-hole v6 exposes local DNS records via /api/config/dns. The shape is unusual: hosts is a string array like ["192.168.1.1 router", "192.168.1.50 printer"], and cnameRecords is a string array like ["router.lan,router,300"]. The only way to add or remove an entry is to PATCH the entire array back.

This is a read-modify-write pattern, and it is the only place in the server where a tool does more than one API call. add_local_a_record looks like this:

@mcp.tool()
async def add_local_a_record(host: str, ip: str) -> dict:
    """Add a local A record (host -> IP). Replaces any existing entry for the same host."""
    dns = await _current_dns_config(client)
    hosts = [h for h in dns.get("hosts", []) if not h.endswith(f" {host}")]
    hosts.append(f"{ip} {host}")
    return await _patch_dns(client, {"hosts": hosts})

Two details are worth calling out:

1. The filter strips any existing entry for the same host before appending. Duplicates are impossible. This is defensive against earlier versions of the tool that might have left stale entries.
2. The PATCH payload only includes hosts, not the full DNS config. Pi-hole's PATCH is a shallow merge at the dns sub-object level. If Pi-hole 6 adds a new key under dns in a future release, this tool still works because it never touches keys it does not know about.

Tests: 13 Passing in 0.48s#

I test the HTTP boundary with respx, which mocks httpx transports. This keeps the tests hermetic (no network, no Pi-hole required to run CI) while still exercising the real client code.

$ uv run pytest -q
.............                                                            [100%]
13 passed in 0.48s

Coverage:

• test_config.py (3): URL normalization, /admin suffix stripping, HTTPS preservation.
• test_client.py (6): auth success, auth failure raises PiholeAuthError, 401 triggers re-auth + retry, API errors propagate with status code, session is cached across calls (single auth round-trip), close() sends DELETE /auth.
• test_tools.py (4): register_all returns 28, stats summary happy path, local DNS delta patch preserves existing entries, domain removal URL-encodes correctly.

The "local DNS delta patch preserves existing entries" test exists because I specifically wanted to catch the case where a future refactor accidentally ships the full config instead of the delta. Small test, high signal.

Live boot check:

$ PIHOLE_URL=http://placeholder PIHOLE_PASSWORD=placeholder uv run python -c \
    "from pihole_mcp.server import _tool_count; print(_tool_count)"
28

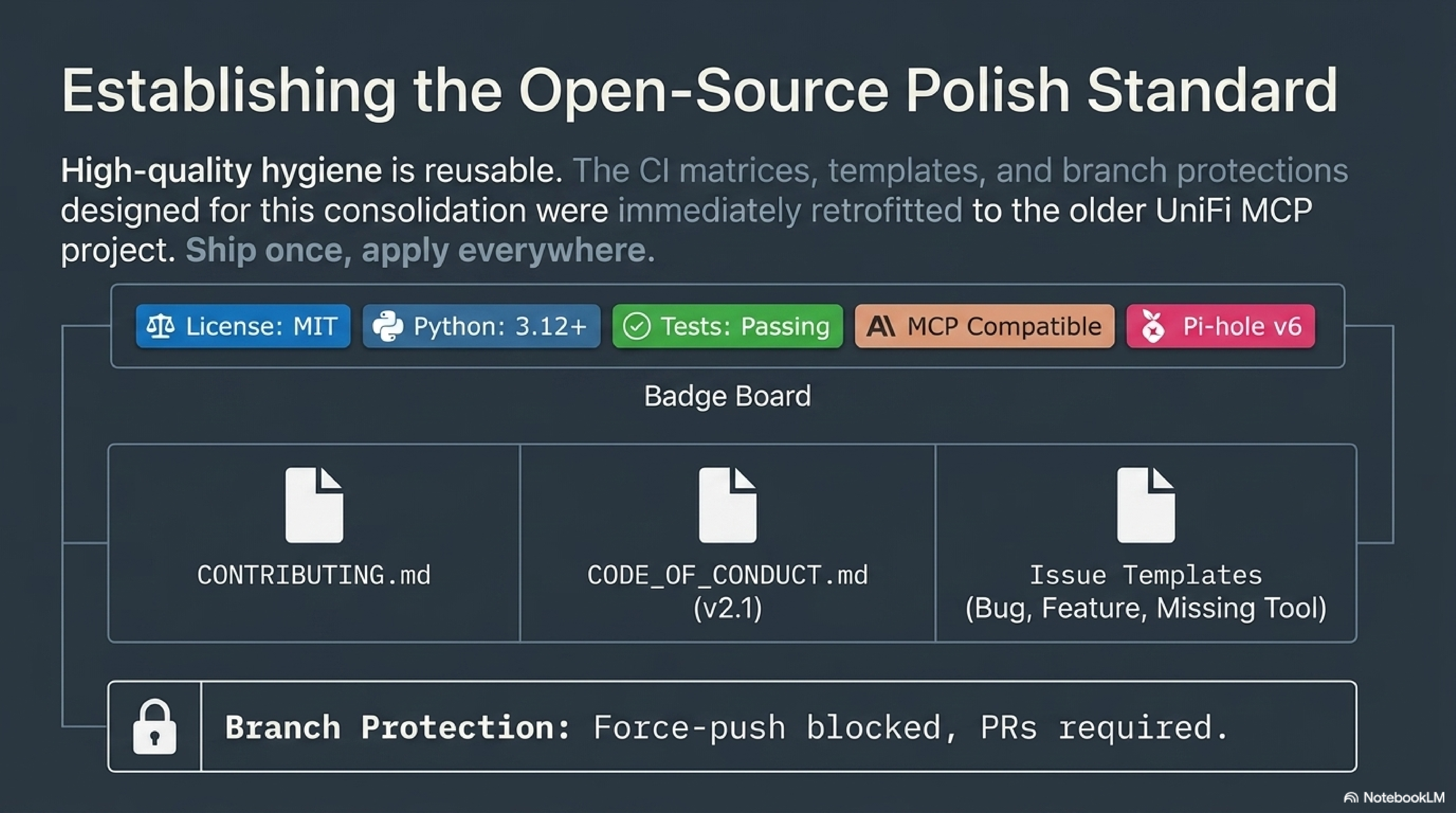

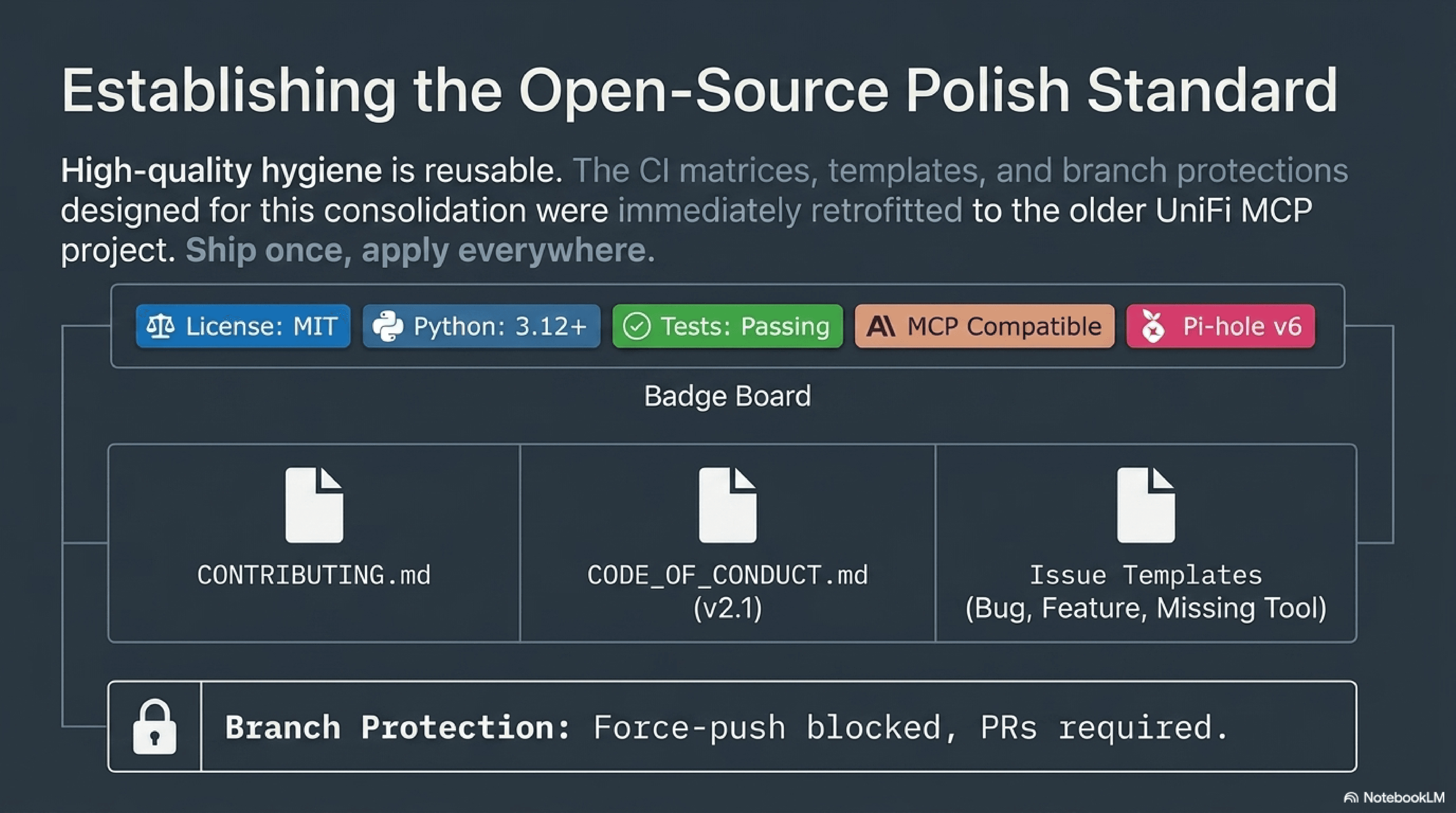

Open-Sourcing: Same Polish, Retrofitted#

Building in a private repo and pushing public are two different tasks. I decided up front that the public repo should look like something I would actually trust as a stranger.

Here is everything that landed in the public ship commit:

The missing_tool.yml template is the one I am most proud of. It asks contributors to fill in: the Pi-hole v6 endpoint, what problem the tool solves, whether it is read-only or destructive, and what they have tested. That template alone will filter the "add a tool for X" issues into actionable form versus vague wishes.

name: Missing tool request
description: Request a new MCP tool for a Pi-hole v6 capability not yet covered
labels: ["enhancement", "tool-request"]
body:
  - type: input
    id: endpoint
    attributes:
      label: Pi-hole v6 endpoint
      description: The /api/* path this tool would wrap
      placeholder: /api/lists
    validations:
      required: true
  - type: dropdown
    id: risk
    attributes:
      label: Risk class
      options:
        - Read-only
        - Mutation (low risk)
        - Destructive
    validations:
      required: true

I also retrofitted the same polish onto the existing chris2ao/unifi-mcp repo (which had shipped public without CI, issue templates, or branch protection). Both repos now present the same contract to a visitor, which matters because they are siblings in the same toolchain.

Click to enlarge

Skills versus MCP: The Decision Framework#

This is the pattern question I keep coming back to. Same Pi-hole v6 API, two valid ways to talk to it from Claude Code.

Use an MCP tool when:

• The operation is conversational: "also check if this domain is blocked right now"
• The operation is read-only or low-risk (get_stats, get_query_log, get_top_blocked)
• You want the model to discover and compose the tool in unrelated contexts (UniFi MCP returns client list, Pi-hole MCP returns top clients, model correlates them)
• The audit trail is fine at the tool-call level

Use a skill when:

• The operation is destructive and deserves a preview-then-apply cycle with a diff
• The operation bundles multiple API calls into one named action
• You want pre-action snapshots for rollback
• You want to fail closed on guardrails (e.g., refuse to flush logs if a forensic flag is set)
• The operation should only run on explicit slash-command invocation, never discovered autonomously

The shorthand: conversational read-only goes in the MCP; destructive scripted goes in a skill. If it is in the middle (low-risk write, one-shot), put it in the MCP with a clear name and let the preview-then-apply live in the caller's prompt.

What is Next#

The gap list from the research phase is still the gap list. Future tools worth adding, in roughly priority order:

1. Adlist CRUD (/api/lists). Add and remove adlists, not just update_gravity to refresh.
2. Group management (/api/groups). Pi-hole 6 supports per-group filtering; useful for kid profiles and guest segmentation.
3. DHCP (/api/dhcp). Leases and static assignments. Low priority for me (the UDM is my DHCP server), but a common request.
4. Teleporter backup (/api/teleporter). Wraps the config ZIP export into a tool that writes to a backup path.
5. Per-VLAN analytics. Post-process get_query_log by client CIDR; surfaces per-VLAN blocking rates that Pi-hole does not natively group.

Each of these is a well-defined endpoint and a clear tool signature, which is what the missing_tool.yml template exists to capture.

I will also add the /pihole-* skill family when the first destructive operation shows up that deserves preview-then-apply semantics. The most likely first candidates are /pihole-onboard-device (add CNAME + whitelist + comment in one action) and /pihole-purge-stale-cnames (bulk cleanup with diff review).

Lessons Learned#

The chris2ao/pihole-mcp repo is public. The research report that kicked it off lives in the private setup repo alongside the KB article. The next session will be the first real dogfooding run against the live Pi-hole, which is where interesting bugs tend to show up. If last week was any guide, something will fail silently and become a blog post.
