Home Network Mission Control: The LOG LAKE Panel, Five Deploy Bugs, and a Vetoed Bytes-Codec Rewrite

The LOG LAKE panel shipped on Wednesday. One PR, two internally-gated waves, a new top-level dashboard tab with a SIEM ingestion-health strip and a GUI firewall query builder that compiles to parameterized ClickHouse SQL under the hood. 1193 backend pytest, 351 Vitest, full Playwright pass at merge. Then I clicked the deploy button on the live Mac mini and the afternoon turned into five production-only bugs, one after another, none of which any CI job had a chance of catching.

That's the build report. The interesting part of this post is the deploy afternoon: a readonly-pool 500 caused by a client setting that fights a server profile, a poll_security_finding_emit job that'd been crashing every five minutes for hours because one side was naive and one side was aware, a Pi-hole syslog pipeline that'd been silently dead for 20 days because of a v6 log-path move stacked on top of a Docker Desktop macOS UDP source-IP rewrite, a Vector container reading a stale bind-mounted config because the inode rewrite didn't bust the macOS cache, and a UDM doubled-hostname frame that broke action derivation for 159,909 rows. And then the meta-lesson: the proposed fix for the last one was an invasive Vector source rewrite that the persona team redirected in two cheap moves, an operator toggle in the UniFi UI and a four-line materialized view recreation that fell out of one live cardinality query.

What the LOG LAKE Panel Actually Is#

The dashboard already had a SIEM under the hood. Phase 1.4 had moved raw_syslog and the related typed views into ClickHouse, and the panels that consumed it (DNS Search, Threat Intel, the Security tab signals) were all in production. What the operator did not have was a way to look at firewall traffic directly. The whole point of a SIEM is that you can search across it, and mine was missing the search.

The LOG LAKE tab's the search. Two panels, one tab:

1. Ingestion-health strip. Freshness age per source, disk usage with a colored bar, a plain-English status line ("Recovering after reboot", "All sources current", "Pi-hole 20 days stale"). Events-per-minute and parse-health are folded into a collapsible Advanced row so the default view does not become a dashboard within a dashboard.
2. GUI firewall query builder. Pick a time window. Pick a source IP, destination port, action, direction, interface. The builder compiles the field set into a parameterized ClickHouse SQL string against firewall_events and renders the result table. It also shows the compiled SPL/KQL-style display string (collapsed) so a curious operator can passively pick up the syntax.

The internal name on the tab is LOG LAKE. The user-facing label is "Logs". The first label is for me, in the codebase. The second label is for me, in front of the dashboard.

Click to enlarge

The Brainstorm That Pinned the Design#

I don't start a panel like this with code. I start it with /sequential-thinking on the planner and twenty minutes of conversation that turns into a plan doc. The plan doc for this one lives at docs/plans/2026-05-25-log-lake-panel-plan.md, and the part of it that mattered most was the table of locked decisions at the top.

The contested ones, in the order they came up:

• Query language vs builder. GUI builder is the primary surface. It generates an SPL/KQL-style display string, read-only, collapsed by default, for transparency and passive learning. The user never types it. (Me, talking to myself: "I am the user.")
• Query target. A new typed firewall_events materialized view off raw_syslog, not direct queries against the raw table. A typed view costs one migration and pays for itself the first time a column-pruning optimization helps.
• Sequencing. One PR, two internally-gated waves. Wave 1 was schema and the freshness strip. Wave 2 was the safety harness and the GUI builder.
• Posture. Both endpoints are read-only. /api/siem/query is POST with a structured body (idempotent, mode-A-open). /api/siem/ingestion is GET. No agent call in v1.

Then the persona team got the plan. Four agents in parallel: siem-database, siem-network, siem-security, siem-homeoperator. The captain agent synthesized. Three of the four came back with concrete corrections to the proposed firewall_events schema, and one of them rewrote the entire ingestion strip.

The operator persona cut the ingestion strip down. The original sketch had six numbers across the top: freshness age, events-per-minute (1h average), events-per-minute (24h average), parse-success-rate, disk-used-bytes, and TTL-active-days. The operator review said that's six numbers, of which the operator (me, the guy who reboots the Mac for OS updates) wants three: am I fresh, am I full, am I OK. The rest fold into the Advanced row.

The operator review also caught the after-reboot color choice. The default behavior was RED for "stale" the moment ingestion paused. The operator persona pointed out that this fires every time the Mac reboots, and the user's going to learn to ignore it. AMBER "recovering" was the answer. RED is for "this has been stale long enough that you should look at it." Two color tiers, two different anxieties. They're not the same anxiety.

Wave 1: Schema, Strip, and the argMax Bug That Was Already There#

Wave 1 was the typed view, the ingestion-health endpoint, the frontend strip. The migration's 0016_create_firewall_events.sql, a MATERIALIZED VIEW that fires on every insert into raw_syslog and writes a row into firewall_events when event_type = 'firewall'. Forward-only. No backfill.

That part went in clean. The part that did not go in clean was the freshness query.

The dashboard already had a collector_health_latest view used by other strips. It was an argMax-shaped query that picked the latest row per (source, host, component). When I tried to reuse it, the strip showed thirty-seven rows instead of three. One source, with all thirty-seven variations of (host, component) combinations the source had ever emitted. Every reboot had spawned new component identifiers. The view was returning the cartesian product of every distinct combination, not the per-source latest.

The fix was small and ugly:

SELECT
    source,
    argMax(host, ts) AS host,
    argMax(component, ts) AS component,
    max(ts) AS last_ts
FROM raw_syslog
GROUP BY source

Two interesting things in that snippet.

First, argMax(host, ts) instead of host in the GROUP BY. The old query was GROUP BY (source, host, component). With mutable fields in the group key, every distinct historical value gets its own row. With argMax(field, ts) in the projection, every source gets exactly one row and the field is the most recent value. This is the right shape for a "latest" snapshot.

Second, max(ts) AS last_ts instead of max(ts) AS ts. The latter's a ClickHouse nested-aggregate parser error: the column ts is already an aggregation key, and aliasing the max(ts) aggregation back to ts makes the parser think you're nesting aggregates inside aggregates. Renaming to last_ts makes the parser happy. I learned this the hard way once, and now I write last_ts from the start every time.

Wave 1 also caught a small VRL bug on ICMP events. The old firewall VRL transform required dpt to be present, which ICMP events do not have. The fix was making ports optional in the transform. Cheap. Caught only because the ingestion-health strip surfaced parse-error rates per source and I clicked into the parse-error sample for one row and saw dpt missing on an ICMPv6 NDP message.

Wave 2: The Safety Harness and the GUI Builder#

Wave 2 was the part that scared me. A panel that lets the user (me) construct an arbitrary ClickHouse query, even through a GUI, is the kind of thing that I'd normally never expose. The safety harness is the only reason this was even on the table.

The harness lives in backend/src/homenet_dashboard/siem/query_compiler.py. The shape is:

1. The frontend posts a structured DSL: a JSON body with time_window, where (a list of field-comparison pairs), limit, select (optional, defaults to a stable set).
2. The compiler walks the DSL through an identifier allowlist. Every field name, every operator, every value type is checked against an allow-list constant in code. Anything not on the list raises ValueError and the request gets a 400.
3. The allowed AST emits two outputs from one pass: a parameterized ClickHouse SQL string with %(param_N)s placeholders, and a SPL/KQL-style display string. Same AST, two renderers.
4. The 30-day-capped mandatory time window is enforced by the compiler, not by the caller. A caller cannot bypass it by omitting the window or by setting a 31-day window. The 30-day cap is the cost of "the operator may misclick" insurance.
5. The LIMIT is clamped to a hard ceiling regardless of what the body says. The default is 1000. The ceiling is 5000.

The IP wildcard handling deserves its own callout, because it surprised me.

The frontend GUI lives at frontend/src/components/cyber/loglake/. The shape is a field panel on the left, a results table on the right, and the compiled display string in a collapsible row above the table. Clicking "Add filter" cycles through the allowed fields. Picking a field cycles through the operators that field supports. Typing a value validates against the field's type. The validation's a thin frontend mirror of the compiler's allowlist, which means the backend compiler is the source of truth and the frontend's just a UX skin over it. Two checks, one source.

GET /api/siem/query/fields returns the allowlist as JSON so the frontend does not encode it twice. One change, one place. The compiler exports it.

PII handling: the dashboard already has pii_mode as a query parameter pattern (see the DNS Search Panel post for how that came to be). The LOG LAKE query inherits that. By default, RFC1918 IPs in src_ip and dst_ip are hashed, and mac is suppressed entirely. There is no UI to flip it off in v1, intentionally.

The audit table is alembic 0015 on the SQLite side. Every POST writes an audit row: who, when, what DSL, what compiled SQL, how many rows. Mode-A safe. Local SQLite. No external dependencies.

One more wave-2 detail: the claude_client ClickHouse pool size went from 2 to 4. Two readonly connections were enough for the existing tabs, which queried sequentially. The new tab queries the ingestion endpoint, the fields endpoint, and the query endpoint concurrently from one page load. Two connections deadlocked the page on the first smoke. Four was empirically enough.

Deploy Day, And Five Bugs in a Single Afternoon#

Wave 2 passed all four CI jobs. PR description was clean. All seven §9 security P0s captain-verified. I pushed the deploy button on the live Mac mini at 3:41 PM and the afternoon turned into five bugs.

The shape of this section: each bug gets a root cause and a fix. Some of them are small. Some of them had been broken for days or weeks before the LOG LAKE deploy made them visible. All five were caught by clicking around in production on the deployed dashboard, which is exactly the workflow Phase 1.1 of this series codified as a wave (the live-system smoke that the persona team does not do for you).

Bug 1: A 500 on POST /api/siem/query, Because Two Layers Both Wanted to Be Readonly#

First click on the LOG LAKE tab, first query, immediate 500. The trace pointed at _claude_client() and a ProgrammingError from the ClickHouse driver about a setting that couldn't be applied.

The cause was a clash between two readonly profiles. The live Mac mini's ClickHouse server has a claude user with a server-side readonly profile configured in ~/.claude/state/clickhouse-users.xml. The server enforces readonly on every query that user issues. Separately, _claude_client() was passing settings={readonly:1, ...} at connect time, which the driver tries to set on the session. A server-readonly session rejects client-set settings, including the readonly setting itself. The driver translates that into ProgrammingError, which the FastAPI handler turns into a 500.

The fix was four lines: drop the connect-time settings={...} dict on the readonly pool. Read-only stays server-enforced, which it already was. The client mustn't also try to set it.

Bug 2: A Five-Minute Crash Loop That Had Been Running for Hours#

While I was debugging Bug 1, I noticed a stack trace in the backend logs that was not mine. poll_security_finding_emit, a job that fires every five minutes, was crashing on gmail_stale.py. The trace said can't subtract offset-naive and offset-aware datetimes.

The thing about this bug is that it had nothing to do with the LOG LAKE deploy. It'd been crashing every five minutes for hours before I deployed. The fact that I hadn't noticed is its own data point.

The cause was a mixed datetime arithmetic that the cutover to ClickHouse for the Gmail heartbeat had introduced. The poll caller passed a naive now (a datetime.utcnow() from the APScheduler hook, no tzinfo). The ClickHouse-returned last_seen_at came back with a UTC tzinfo attached (ClickHouse Driver default for DateTime types). Subtracting one from the other is a TypeError in Python 3.

The fix was a one-liner that I'd write three more places before the day ended: normalize both to naive UTC before the subtraction. I added a regression test (tests/test_security_findings/test_gmail_stale_naive_utc.py) so the next person who refactors the heartbeat doesn't get to repeat this for a fourth time.

Bug 3: Pi-hole Syslog Had Been Silently Dead for 20 Days#

I went back to the LOG LAKE tab after Bug 1 was fixed, ran a query for any Pi-hole-sourced row in the last 24 hours, and got zero results. Ran the same query against the last 30 days. Zero. Ran it against all-time. Zero.

The strip was telling me pihole was 20 days stale. Twenty days. That meant on the same day the Phase 1.4 cutover landed, Pi-hole syslog ingestion stopped, and nothing else in the dashboard had needed it. I hadn't known.

The diagnosis took longer than the fix. Two layers, stacked.

Layer A: Pi-hole v6 moved query logging. The old path was /var/log/pihole/FTL.log (the FTL daemon log). The new path's /var/log/pihole/pihole.log (the dnsmasq-format log). The rsyslog forwarder on the Raspberry Pi was still tailing FTL.log, which existed as a frozen file from before the upgrade. So the Pi was sending nothing.

Layer B: Docker Desktop macOS rewrites inbound UDP source IPs. This one I didn't know. Vector inside the docker-compose stack has a syslog source listening on UDP 5140. A route_by_source VRL transform branches the message based on the source IP: src_ip == "172.16.27.227" routes to the pihole parser. The thing is, when a UDP packet comes from the LAN to Docker Desktop on macOS, the kernel rewrites the source IP to the Docker Desktop VM gateway 192.168.65.1. So the rule src_ip == "172.16.27.227" never matched, and every Pi-hole packet that did make it through fell off the end of the route table into _unmatched.

The fix was two changes on two different boxes.

On the Pi:

# /etc/rsyslog.d/30-pihole-ftl.conf
module(load="imfile")
input(type="imfile"
      File="/var/log/pihole/pihole.log"
      Tag="pihole"
      Severity="info"
      freshStartTail="on")
*.* @172.16.27.10:5140

On Vector:

# route_by_source.transforms
pihole:
  type: filter
  inputs: [syslog_in]
  condition: '.hostname == "raspberrypi"'

Two changes, two failure modes. The Layer A fix made the Pi send the right log. The Layer B fix made Vector route it by a field that survived the source-IP rewrite (hostname is in the syslog payload, not in the UDP header).

Bug 4: Vector Was Reading a Stale Bind-Mounted Config for 28 Hours#

After I made the Vector config change, the Pi-hole rows still didn't flow. I tailed the Vector container logs. I saw a healthcheck failing. The healthcheck had been failing for 28 hours. I hadn't noticed.

vector validate inside the container failed with a parser error pointing at a line number that didn't match the file I had on disk. I docker exec'd into the container and ran wc -l /etc/vector/vector.yaml. The container saw 535 lines. The file on the host was 547 lines. The container was reading a truncated, stale copy. The missing 12 lines included an emit_heartbeat transform that other parts of the pipeline depended on.

This is a macOS Docker Desktop bind-mount cache problem. The host file had been edited and saved, but the container hadn't re-read it. The kicker: I'd already done one trick to bust the cache that I knew worked from other projects, which was rewriting the inode (write to a tmp file, then mv over the target). The inode rewrite didn't bust the cache in this case. I don't know why. What did bust it was a force-recreate:

docker compose up -d --force-recreate --no-deps vector

A new container, a fresh read of the bind mount, the 547 lines all showed up, the healthcheck went green, and the Pi-hole rows started flowing. Three minutes later, the ingestion strip showed pihole at freshness "0s ago". Twenty days resolved.

Bug 5: "The UDM Stopped Logging at 22:24", or, Three Hidden Bugs Behind One Misread Timestamp#

After Pi-hole was healthy, I went back to the LOG LAKE tab. Ran a query for any UDM-sourced row in the last hour. Got rows. Ran a query for any UDM-sourced row in the last six hours. Got rows from the last hour only. Ran "last 24 hours". Same. The UDM was logging continuously, but the dashboard thought it'd stopped at 22:24 the night before.

This took me longer than the prior four bugs combined, because the first sentence I told myself (the UDM stopped logging at 22:24) was wrong, and every diagnostic I ran proceeded from that wrong sentence. The UDM hadn't stopped logging. The dashboard's read of the timestamp was four hours off.

Three bugs stacked, and the first one was my own:

Bug 5a (operator error): four-hour timezone skew. UDM sends RFC3164 BSD syslog timestamps. RFC3164 has no timezone field. The Vector syslog source has a global timezone: config that I had set to UTC. I expected Vector to assume UTC for naive BSD timestamps from the configured source. It does not. Vector's syslog source documents this: the global timezone: is for the parsed message, not for the syslog framing. BSD timestamps with no zone are parsed as the container's local time, and the container's local time is UTC. The UDM sends in Eastern (UTC-4 in May), so every row landed four hours into the future of when the UDM actually emitted it. Querying "last hour" against a row dated four hours ahead returned nothing. The fix:

udmpro_parser:
  type: remap
  source: |
    .ts = .time_received

.time_received is Vector's ingestion timestamp, which is UTC and which I trust more than the wire ts because the wire ts is zoneless. I made the same change for the unifi source for consistency. Eight hours of data became visible the moment I deployed it.

Bug 5b (vendor wire bug): UDM doubled-hostname frame. With the timestamp fixed, I queried "UDM rows in the last 10 minutes" and got 221 of them, and every single one had event_type unset. Which meant the materialized view for firewall_events was getting zero rows, which meant the LOG LAKE tab was empty for the marquee firewall use case.

Sample message, raw from the wire:

<13>May 29 18:04:11 UDM-Pro UDM-Pro [PREROUTING-DNAT-4] DESCR=PortForward DNAT [qBittorrent] IN=eth9 OUT=br0 SRC=185.180.143.213 DST=24.150.122.46 PROTO=TCP SPT=42103 DPT=6881

The frame has UDM-Pro twice. RFC3164 has one hostname slot. Vector's syslog parser fills the hostname slot from the first UDM-Pro, and then consumes the second UDM-Pro as the syslog appname. Then it consumes [PREROUTING-DNAT-4] as the procid. Then .message begins at DESCR=.... The netfilter chain tag [PREROUTING-DNAT-4] is now in the procid field, not in the message.

My parse_udmpro VRL transform had three regex shapes. Shape 3, the firewall shape, required a leading [TAG] at the start of the message. With .message starting at DESCR=, Shape 3 matched zero rows. event_type never got set to firewall. The MV's WHERE event_type = 'firewall' filter rejected every row.

The fix: make the [TAG] prefix optional in Shape 3, and extract the tag from .procid if .message doesn't have one. Two lines. The MV started getting rows the moment Vector reloaded.

Bug 5c (the meta-bug): action was still "unknown" for every row. With the MV filling, I ran the first real LOG LAKE query: "show me everything from firewall_events in the last 90 seconds." 159 rows. Every single one had action = 'unknown'.

The first instinct was to fix the parser to recover the netfilter tag from the doubled-hostname frame more aggressively, on a separate bytes-codec syslog source path. This was the proposed-rewrite path. It was non-trivial. Two parser paths, one UDP listener split into two on a second port, a bytes-codec source so I could see the literal frame bytes and reconstruct the tag from positions the syslog parser had thrown away.

I almost wrote it. I didn't write it. Section coming up.

The Vetoed Rewrite, and the Operator Toggle That Replaced It#

I had a draft of the bytes-codec rewrite open in a buffer and I was 40 minutes into it when I checked in with the persona team on the proposed approach. The captain agent's response was the day's most useful redirect.

The redirect's two questions:

1. What is the actual distribution of action values you need to surface?
2. Why is the UDM only logging this one kind of event?

I went and ran a live cardinality query on firewall_events:

SELECT
    action,
    multiIf(descr ILIKE '%dnat%', 'dnat',
            descr ILIKE '%block%', 'block',
            descr ILIKE '%allow%', 'allow',
            'other') AS inferred,
    count(*) AS n
FROM firewall_events
WHERE ts >= now() - INTERVAL 24 HOUR
GROUP BY action, inferred
ORDER BY n DESC

Result: 159,909 rows, 100% of them with action = 'unknown', 100% of them with inferred = 'dnat'. Zero drops. Zero accepts. Zero rejects. Zero other.

The UDM was logging exactly one thing: PREROUTING DNAT events for the qBittorrent port-forward. That was it. Not because the firewall wasn't dropping or accepting traffic, but because the UDM by default doesn't log accept/drop events on its WAN firewall. Per-rule logging is an opt-in checkbox in the UniFi UI that I'd never enabled.

So the bytes-codec rewrite would've done the work of parsing tags out of doubled-hostname frames, and it would've parsed [PREROUTING-DNAT-4] for the only kind of row the UDM was emitting, and the LOG LAKE panel would still have shown nothing useful for drop/accept analysis.

The redirect was: enable per-rule logging in the UniFi UI, then look at the wire again. I clicked the checkbox. WAN-scan drops started flowing at roughly 33 per minute. Now I had real data.

And the data revealed the simpler fix. Every row that had action = 'unknown' also had a descr field that carried the verdict in human-readable English: [WAN_LOCAL]Block All Traffic, PortForward DNAT [qBittorrent], [LAN_LAN]Allow All Traffic. The doubled-hostname frame had cost me the netfilter tag, but the descr field had been there the whole time. It's the kind of detail you'd never look at until you needed it.

Migration 0017_firewall_events_action_from_descr.sql recreated the MV with a case-insensitive descr fallback:

multiIf(
    -- explicit tag-based derivation, when the tag is present
    fields['tag'] ILIKE '%block%' OR fields['tag'] ILIKE '%drop%', 'drop',
    fields['tag'] ILIKE '%allow%' OR fields['tag'] ILIKE '%accept%', 'accept',
    fields['tag'] ILIKE '%dnat%', 'dnat',
    -- descr fallback, for doubled-hostname frames where the tag is lost
    fields['descr'] ILIKE '%block%' OR fields['descr'] ILIKE '%drop%', 'drop',
    fields['descr'] ILIKE '%allow%' OR fields['descr'] ILIKE '%accept%', 'accept',
    fields['descr'] ILIKE '%dnat%', 'dnat',
    'unknown'
) AS action

Tag-first, descr-second. The tag wins when it is present (other source paths, future firmware fixes). The descr wins when the tag is missing (today's UDM). Forward-only: old rows with action = 'unknown' stay that way and age out via the 180-day TTL. New rows get the descr-derived verdict.

Live verification 90 seconds later: 11 drop rows, 21 dnat rows. POST /api/siem/query {action: 'drop'} returned real inbound-WAN drops including the WAN-scan attempts the UDM had been silently dropping since I plugged it in.

Before and After: firewall_events.action#

Old rows are not retroactively fixed. That is by design. Backfilling a MV against raw_syslog for 180 days would be a real query and a real disk-IO event. Forward-only fix, age-out the past, accept the gap.

The Ingestion Pipeline, End to End#

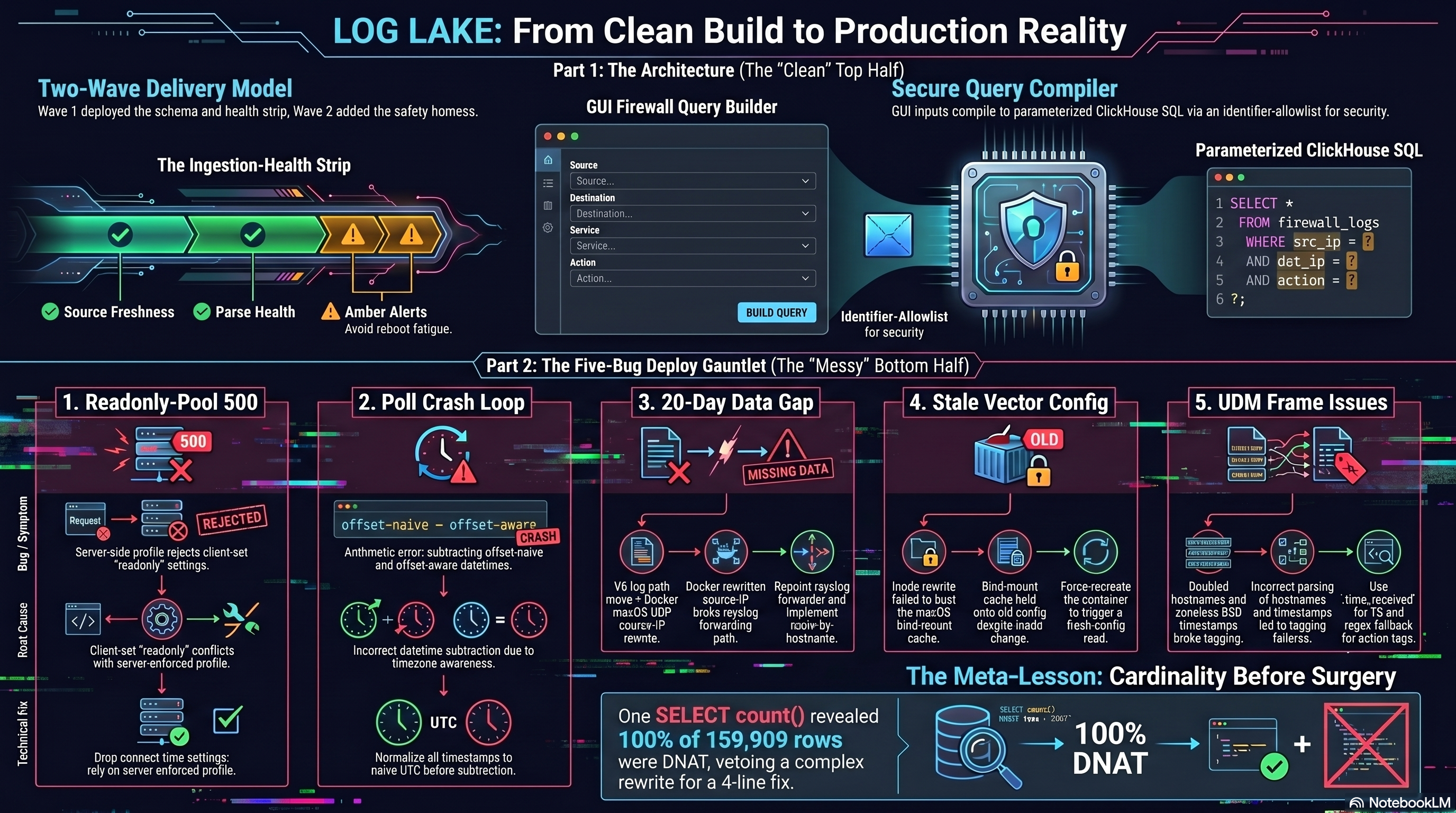

The shape of the LOG LAKE pipeline, with all five bug fixes applied, looks like this. UDM Pro and Pi-hole and UAPs push syslog UDP 5140 to Vector on the Mac mini. Vector routes by hostname (post Bug 3), parses with VRL (post Bug 5), writes raw_syslog. The firewall_events MV fires on every insert (post 0016, 0017) and projects typed rows. The Mission Control backend exposes two endpoints. The LOG LAKE panel reads them.

If you'd rather read this as slides, the deck version is here: LOG LAKE Panel slide deck (PDF). Same arc as the post, fewer words per page.

Lessons Learned#

The Numbers at Merge#

The bug-attribution row is the one I want to flag for the next post. Of the five bugs caught on deploy day, only one was actually caused by the LOG LAKE deploy. Four had been broken for hours, days, or weeks. The dashboard had not surfaced them because no other panel was looking. LOG LAKE was the first panel to look.

Patterns Worth Carrying Forward#

A typed materialized view's cheaper than parameterized raw queries. firewall_events is one migration. Every query against it is a column-pruned scan with the right sort key. The cost of designing the schema (one pass with the persona team) was the same as the cost of writing a single ad-hoc parameterized query, and the typed view paid for itself by the third query.

The GUI builder and the display string come from one AST. Two renderers, one source of truth. The user can read the syntax they did not type. The frontend cannot construct an SQL string the backend would refuse. Both checks are the same check.

The ingestion-health strip is the test rig for its own pipeline. Wave 1 caught the ICMP VRL bug because the strip surfaced parse-error rates per source. The first thing a panel like this is good for is finding bugs in itself. That's not an accident; it's the same principle as a smoke test that exercises the path it's named for.

Forward-only is a real shape, not a cop-out. Migration 0017 did not backfill 159,909 rows. It rolled the MV forward and let old rows age out via the existing TTL. Backfilling a MV against raw_syslog for 180 days is a real query. The shape "new code, new rows, old rows age" is the same shape that worked for the naive_utc_now() migration in Phase 3. Cheap fix, accept the gap.

Run live cardinality on the target column before parser surgery. The vetoed bytes-codec rewrite is the case study. The bug was upstream (UDM not logging accept/drop by default). The fix that would have eaten an afternoon would have parsed the right tag from the wrong rows.

What's Next#

The companion post on the Claude Code Workflow side covers the merge story: this PR (#19) grew to 8 commits, got marked MERGED with only 3 of 8 landed when its base branch moved mid-stack, and was recovered via PR #20 and PR #21, and then weeks later the whole thing landed on main via PR #23. The blog post you are reading is the build story. The companion post is the "what to do when GitHub's PR state and your commits disagree" story.

For the dashboard itself, the next visible feature is east-west log visibility. firewall_events is firewall-only by design (the persona team made that explicit). LAN-to-LAN intra-VLAN visibility is a different kind of log, and it lives on a different scope. That is a future tab, not a LOG LAKE expansion. The Backlog tracks it as FUT-1.

The thing about the LOG LAKE panel is that I built it for me, the single operator who reboots the Mac mini for OS updates, and I didn't have to learn anyone else's query language to use it. I sat down on Wednesday, clicked into the tab, picked action = drop and time_window = 1h, and saw real WAN-scan drops on my home network for the first time. Not because I figured out the syntax. Because the panel did the figuring out for me. That's the version of "a SIEM you can actually search" that this build was aiming at.
