OpenClaw Deployment Part 4: Mission Control

After three parts covering a locked-out fortress, a comeback, and the memory architecture that keeps seven agents thinking across sessions, we arrive at the part I did not know I needed until I was running seven agents and had no good way to see what any of them were doing.

The OpenClaw TUI is great for chatting with a single agent. It is not great for glancing at a screen and knowing at a glance whether your fleet is healthy, which bots are connected, who is burning through tokens, and whether the gateway is still alive after one of its famous long-polling timeouts. I needed a dashboard. I built one.

This is Mission Control.

By the end of this post, you will understand how the dashboard is architected, what every panel does, how the Team page pulls agent personas from workspace files, and why building custom CSS pixel sprites for seven AI agents at 2am is a completely reasonable use of your time.

The Stack#

Before we get into the features, the "why this, not that" stack explanation:

• Next.js 15 App Router: file-based routing, React Server Components for static panels, client components where real-time data is needed
• TypeScript: no surprises about what the OpenClaw API returns
• No CSS framework: the pixel-art retro theme required custom CSS variables and hand-rolled utility classes. Tailwind would fight this aesthetic constantly. Custom CSS variables won.
• WebSocket to ws://localhost:18789: the OpenClaw gateway API. The dashboard polls this for live agent status, system metrics, and log streams.

The entire dashboard runs client-side and talks directly to the local gateway. No backend server, no API routes, no database. It is a React app that talks to localhost. This means it can only be used from the same machine running OpenClaw, which is exactly the right threat model for a personal fleet dashboard.

The Visual Language: Pixel-Art Retro#

Every element in Mission Control is built in a pixel-art aesthetic. No rounded corners, no drop shadows, no glass morphism. Sharp edges, scanline textures, monospace fonts, and a green-on-black color palette pulled from 1980s command terminals.

The core design tokens:

:root {
  --mc-bg: #0a0a0a;
  --mc-surface: #111111;
  --mc-border: #1a4a1a;
  --mc-accent: #00ff41;       /* Matrix green */
  --mc-accent-dim: #00aa2a;
  --mc-warning: #ffaa00;
  --mc-error: #ff3333;
  --mc-text: #c8ffc8;
  --mc-text-dim: #5a8a5a;
  --mc-font: 'Courier New', Courier, monospace;
  --mc-pixel-size: 2px;       /* Base pixel unit for sprite scaling */
}

The "pixel" visual effect on cards and panels comes from a CSS property combination:

.pixel-card {
  border: var(--mc-pixel-size) solid var(--mc-border);
  box-shadow:
    0 0 0 var(--mc-pixel-size) #000,
    var(--mc-pixel-size) var(--mc-pixel-size) 0 var(--mc-pixel-size) var(--mc-accent-dim);
  image-rendering: pixelated;
}

The double box-shadow creates a "lifted pixel" effect: a black outline followed by a green drop on two sides, making every card look like it exists in a flat 2D world with no physics.

The PixelSprite System#

This is the part that absolutely did not need to be this complex, and yet here we are.

Each of the seven agents has a unique 12x16 pixel art character sprite. Not an image file. Not an SVG. Pure CSS box-shadow properties that paint pixels at specific offsets from a 1x1 <div> element.

Here is how the Commander sprite (JClaw27) is built:

// src/components/PixelSprite.tsx
interface PixelSpriteProps {
  agentId: string;
  size?: number;  // pixel scale multiplier
}

const SPRITE_DEFINITIONS: Record<string, string[]> = {
  main: [
    // Each string is "x,y,color" for one pixel
    // Head with headset
    '4,0,#ffd4aa', '5,0,#ffd4aa', '6,0,#ffd4aa', '7,0,#ffd4aa',
    '3,1,#222222', '4,1,#ffd4aa', '5,1,#ffd4aa', '6,1,#ffd4aa',
    '7,1,#ffd4aa', '8,1,#222222',
    // ... 192 more pixels
    // Star insignia on chest
    '5,8,#ffff00', '6,8,#ffff00', '7,8,#ffff00',
  ],
  // ... 6 more agents
};

export function PixelSprite({ agentId, size = 2 }: PixelSpriteProps) {
  const pixels = SPRITE_DEFINITIONS[agentId] ?? SPRITE_DEFINITIONS['main'];

  const boxShadow = pixels
    .map(p => {
      const [x, y, color] = p.split(',');
      return `${parseInt(x) * size}px ${parseInt(y) * size}px 0 ${color}`;
    })
    .join(', ');

  return (
    <div
      style={{
        width: `${size}px`,
        height: `${size}px`,
        boxShadow,
        imageRendering: 'pixelated',
      }}
      aria-hidden="true"
    />
  );
}

The result is a floating grid of colored squares, positioned entirely through box-shadow offsets. The wrapper div is literally one pixel wide. Everything you see is a shadow of that one pixel, cast at different positions and colors.

Each agent has a distinct silhouette:

The sprites animate on hover with a CSS keyframe that shifts the whole shadow stack up by two pixels, creating a "jump" effect. It is exactly as delightful as it sounds.

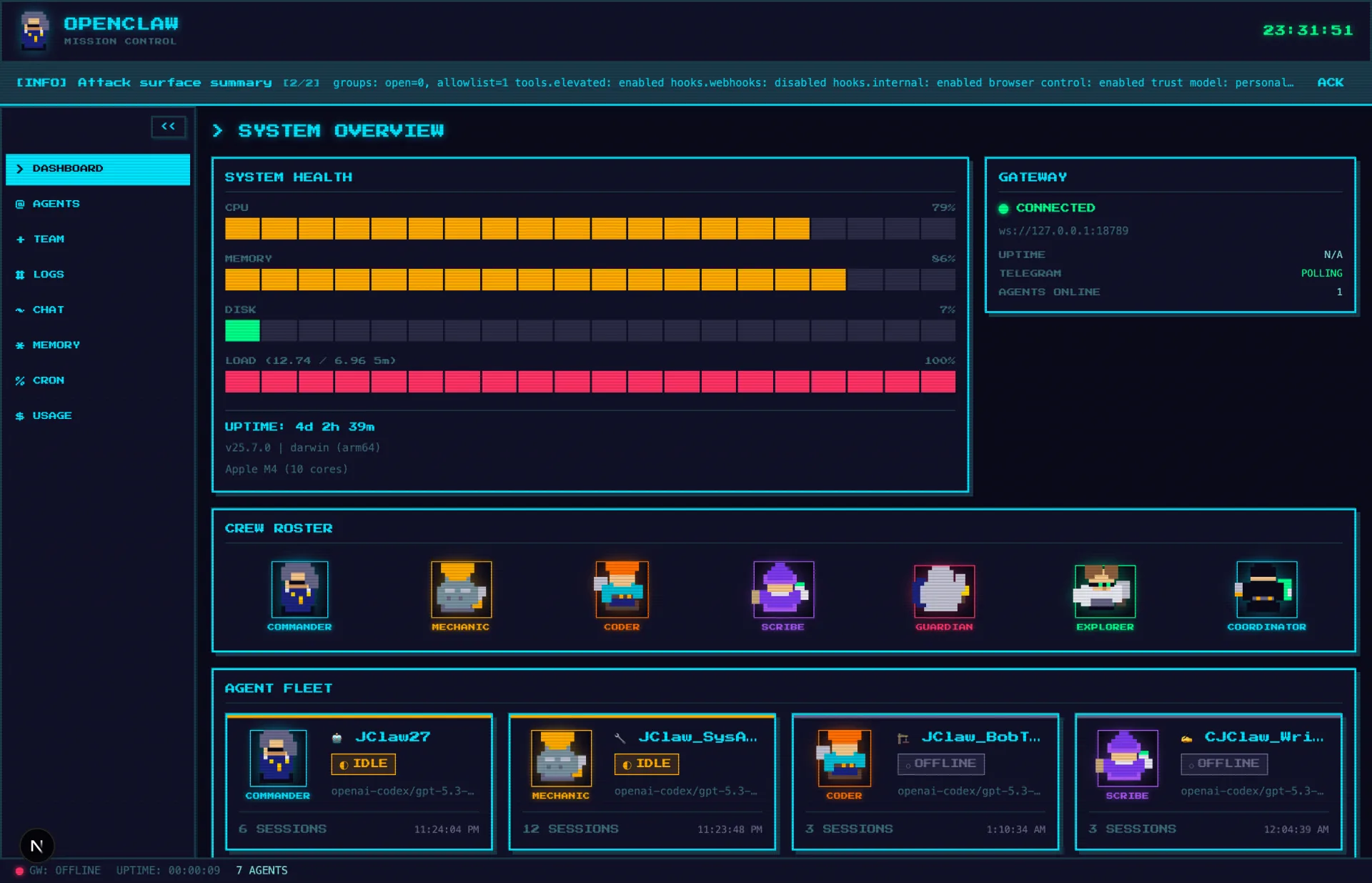

Dashboard Overview#

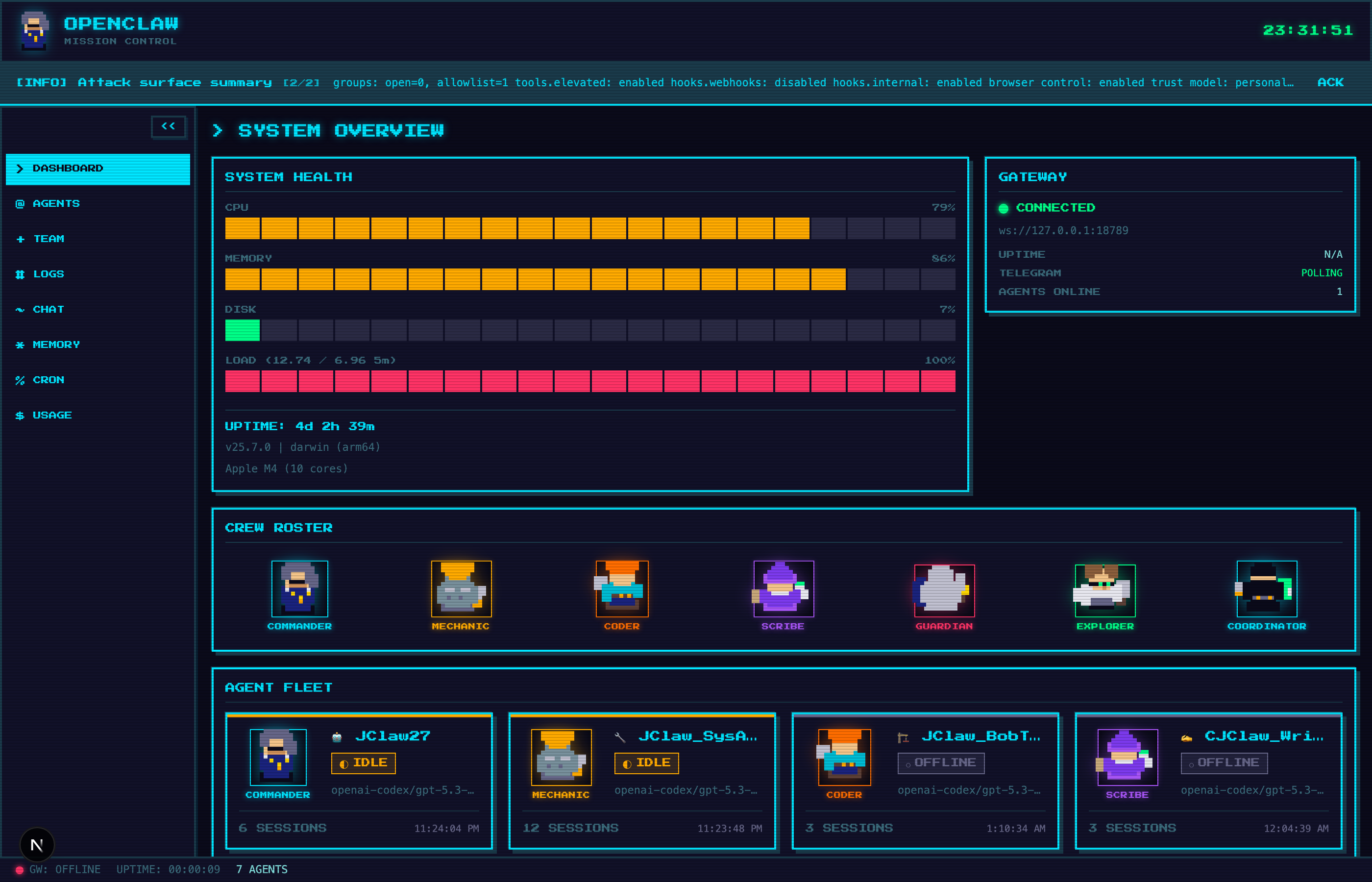

The main dashboard view is a single-page layout with six panels arranged in a responsive CSS grid. Here is what you see when you open Mission Control:

The six panels, left-to-right, top-to-bottom:

1. System Health: CPU, Memory, Disk, Load Average with pixel progress bars
2. Gateway Status: WebSocket connection state, uptime, last message timestamp
3. Crew Roster: All 7 agents as animated pixel sprites with status indicators
4. Agent Fleet: Detailed per-agent table with model, session count, last activity
5. Log Viewer: Streaming gateway log tail with severity filtering
6. Quick Actions: Restart gateway, force agent compaction, clear logs

Let me walk through each one.

Panel 1: System Health#

The System Health panel polls ws://localhost:18789/api/v1/system every 5 seconds and displays CPU percentage, memory usage (used/total GB), disk usage, and 1-minute load average as pixel-style progress bars.

The pixel progress bars are CSS-only. No canvas, no SVG, no JavaScript animation:

.pixel-bar {
  height: 8px;
  background: var(--mc-surface);
  border: 1px solid var(--mc-border);
  position: relative;
  overflow: hidden;
}

.pixel-bar-fill {
  height: 100%;
  background: var(--mc-accent);
  transition: width 0.3s ease;
  /* The "pixelated" fill: a repeating pattern of slightly darker blocks */
  background-image: repeating-linear-gradient(
    90deg,
    transparent 0px,
    transparent 3px,
    rgba(0,0,0,0.2) 3px,
    rgba(0,0,0,0.2) 4px
  );
}

.pixel-bar-fill.warning {
  background: var(--mc-warning);
}

.pixel-bar-fill.danger {
  background: var(--mc-error);
}

Color thresholds: green under 70%, amber from 70-89%, red at 90+. The fill transitions smoothly on update, but because it is a pixel bar (no antialiasing), the movement looks like blocks sliding in from the left. It feels correct in a retro context.

Panel 2: Gateway Status#

The Gateway Status panel is the dashboard's canary. If this panel is red, nothing else matters.

It shows:

• Connection state: CONNECTED (green), RECONNECTING (amber), OFFLINE (red)
• Gateway version (from /api/v1/health response)
• Uptime: how long since the gateway last started
• Polling lag: time since last successful message (alerts if over 8 minutes)

The 8-minute polling lag alert directly addresses the documented OpenClaw Telegram long-polling timeout bug. If the gateway has been silent for more than 8 minutes, there is a good chance Telegram has stopped delivering messages and the gateway watchdog cron is about to fire. The alert lets me know before the bots go quiet.

// The Gateway status indicator component
function GatewayStatusBadge({ state, pollingLagMs }: {
  state: 'connected' | 'reconnecting' | 'offline';
  pollingLagMs: number;
}) {
  const lagging = pollingLagMs > 8 * 60 * 1000;

  return (
    <div className={`pixel-badge ${state} ${lagging ? 'lagging' : ''}`}>
      <span className="pixel-blink-dot" />
      <span>{state.toUpperCase()}</span>
      {lagging && <span className="lag-warn">[LAG: {Math.round(pollingLagMs / 60000)}m]</span>}
    </div>
  );
}

The blinking dot is a CSS animation: a <span> that alternates between opacity: 1 and opacity: 0 on a 1-second cycle. Purely decorative. Correctly retro.

Panel 3: Crew Roster#

The Crew Roster is the most visually distinctive element of the dashboard. Seven pixel art sprites, each one rendered by PixelSprite, arranged in a horizontal row with status badges below each character.

The status badges pull from the same WebSocket feed as the Agent Fleet panel:

• ACTIVE (bright green): agent is processing a request right now
• IDLE (dim green): agent is connected and waiting
• OFFLINE (red): agent process is not running
• THINKING (amber, blinking): agent has a pending action waiting for approval

Hovering over a sprite shows the agent's name and last activity timestamp in a small tooltip. Clicking navigates to that agent's detail view in the Agent Fleet panel.

The 7-sprite layout uses CSS Grid with a responsive collapse. On screens narrower than 768px, the roster drops to a 2x4 grid (4 top, 3 bottom). On very small screens (below 480px), it becomes a vertical list with the sprites replaced by smaller AgentTitleCard components that show just the name and status badge without the pixel art.

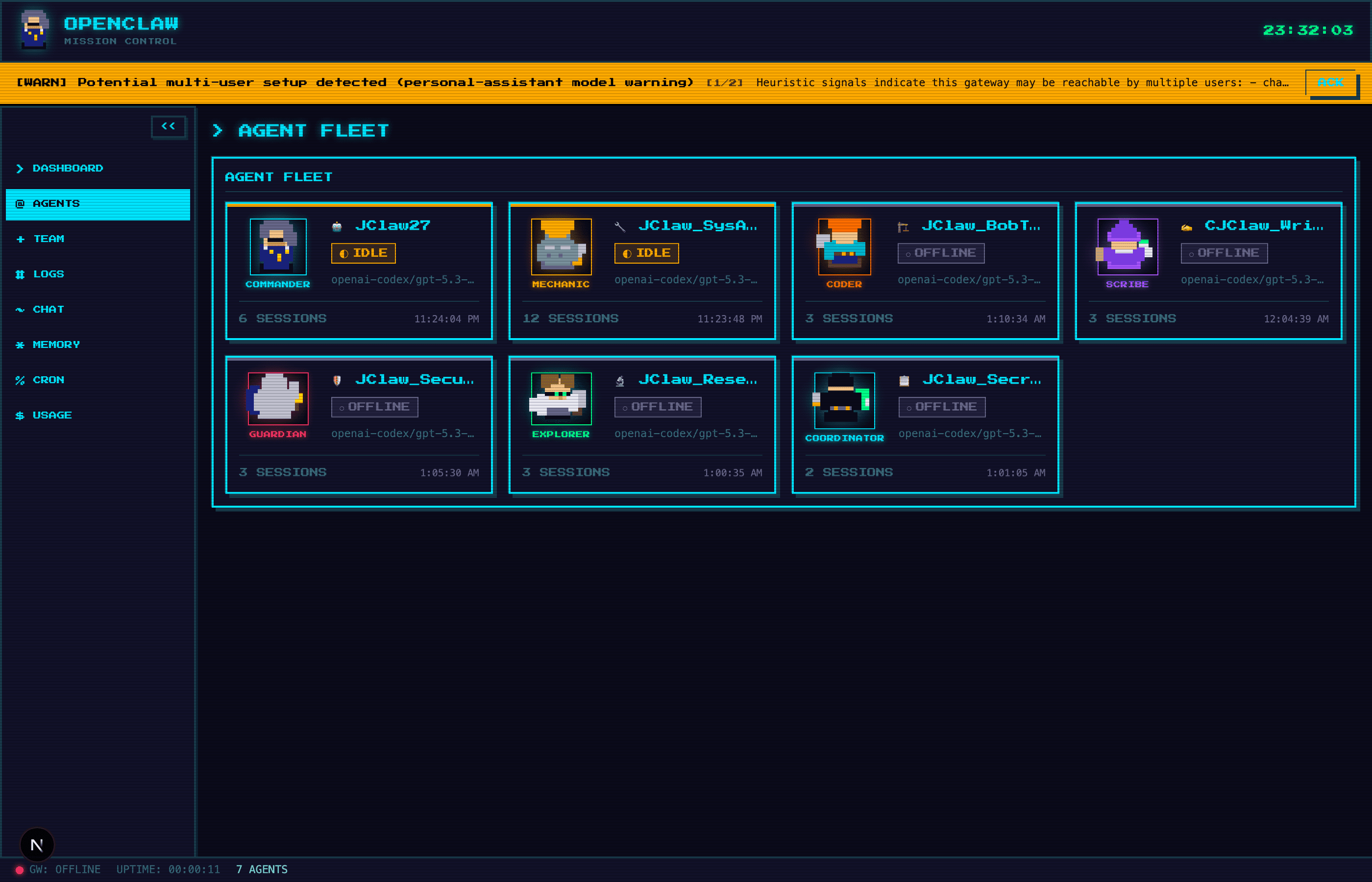

Panel 4: Agent Fleet Grid#

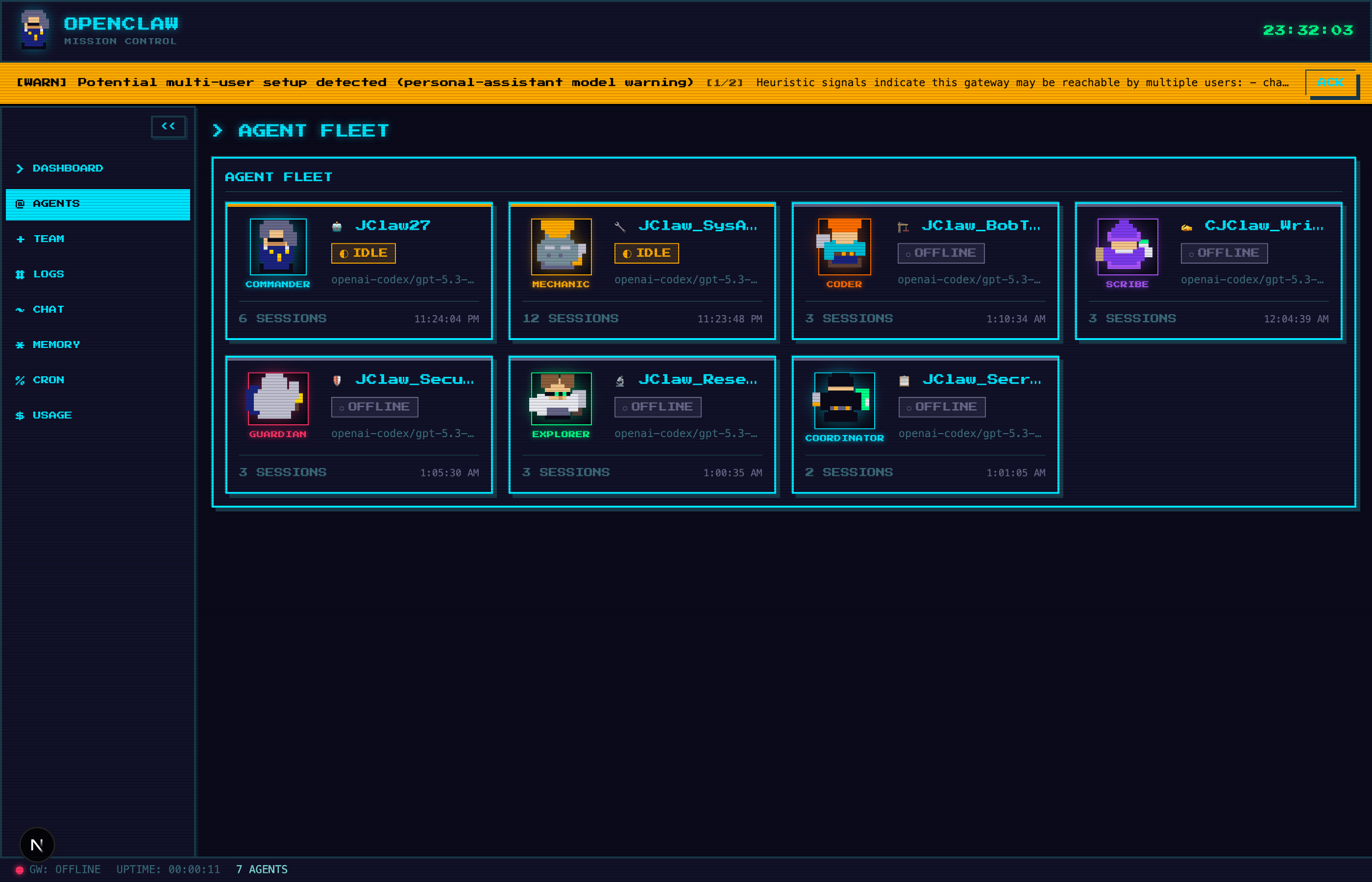

The Agent Fleet grid is the most information-dense panel. It shows a table with one row per agent and the following columns:

The "Tokens (total)" column is why the Usage/Token tracking panel exists as a separate view. The Fleet grid shows a summary; the dedicated usage panel shows per-agent burn rates, daily totals, and a bar chart of relative consumption across the fleet.

The table rows are sortable by clicking any column header. Sort state is stored in URLSearchParams so a sorted view is bookmarkable. This detail is overkill for a single-user dashboard. I added it anyway.

Panel 5: Log Viewer#

The Log Viewer is a streaming terminal-style display of the OpenClaw gateway log. It tails the WebSocket log stream and renders each line with syntax-aware coloring.

Log levels map to colors:

DEBUG   ->  dim green    (--mc-text-dim)
INFO    ->  bright green (--mc-text)
WARN    ->  amber        (--mc-warning)
ERROR   ->  red          (--mc-error)

Filtering options: by log level (show only WARN and above), by agent ID (show only logs from builder), and a text search input that filters in real time. All three filters compose: the log viewer shows only lines that match all active filters simultaneously.

The display is a <pre> element with overflow-y: auto and a fixed height. New lines are appended to the bottom and the element auto-scrolls, unless you have scrolled up manually (in which case auto-scroll pauses). Scrolling back to the bottom re-enables auto-scroll. This is the standard terminal behavior that users expect and that is slightly annoying to implement correctly.

function useAutoScroll(ref: React.RefObject<HTMLElement>, enabled: boolean) {
  useEffect(() => {
    if (!enabled || !ref.current) return;
    ref.current.scrollTop = ref.current.scrollHeight;
  });
}

The log buffer is capped at 2,000 lines. When the buffer fills, the oldest 500 lines are dropped. This prevents the log viewer from eating memory if you leave Mission Control open overnight.

Panel 6: Chat and Telegram Monitor#

The Chat panel has two modes, toggled by a tab bar: Direct Chat and Telegram Monitor.

Direct Chat sends messages directly to a selected agent through the gateway API. You pick the agent from a dropdown (showing all seven with their current status), type a message, and the response streams back. It is functionally equivalent to the TUI but styled as a terminal window. The streaming response renders token by token, with a blinking cursor at the end of the partial response.

Telegram Monitor is a read-only view of the Telegram message stream. It shows all incoming Telegram DMs and group messages with the agent they were routed to, the sender's username, and the full message text. This is useful for confirming that Telegram messages are actually reaching the gateway and being routed correctly, without needing to open Telegram on a separate device.

The Telegram Monitor does not let you send messages from the dashboard. Telegram responses go through the bot, not through the dashboard. The monitor is purely observational.

Panel 7: Memory Health#

Memory Health is a dashboard-within-the-dashboard for the vector memory system documented in Part 3.

It shows, per agent:

• DB size: the size of the SQLite database holding the agent's vector store
• Embedding model: which model is being used (should be nomic-embed-text for all seven)
• Last indexed: timestamp of the last successful write to the vector store
• Dirty status: whether there are pending memories not yet embedded
• MEMORY.md size: how bloated the agent's curated memory file is getting

The "dirty status" indicator is the most operationally useful one. An agent that has been running for several hours accumulates raw memories in the daily notes files faster than the embedding process indexes them. A dirty agent has memories that are not yet searchable. If all seven agents show dirty status, the Ollama embedding service may be down.

Clicking any agent's memory row opens a detail panel that shows the 10 most recent memories with their cosine similarity scores against a test query ("most important recent events"). This lets you verify that the embedding process is actually producing meaningful vectors, not garbage.

Panel 8: Cron Jobs#

The Cron panel shows the schedule and last-run status of every cron job in ~/.openclaw/cron/jobs.json.

For the JClaw fleet, that means:

Each row shows the cron expression, a human-readable description, the last run timestamp, the last run result (success/failure), and a "Run Now" button that fires the job immediately through the gateway API.

The "Run Now" button has a confirmation dialog because firing a cron job manually sometimes has side effects (the gateway watchdog, for example, kills and restarts the gateway process, which disconnects the dashboard WebSocket). The confirmation message describes the side effects of each job specifically:

const CRON_WARNINGS: Record<string, string> = {
  'gateway-watchdog': 'This will restart the gateway process. The dashboard will reconnect automatically within 10 seconds.',
  'memory-create': 'Safe to run anytime. Creates empty daily memory files for all agents.',
  // ...
};

The Team Page#

Now we get to the feature I am most proud of, and also the one I spent the most time on.

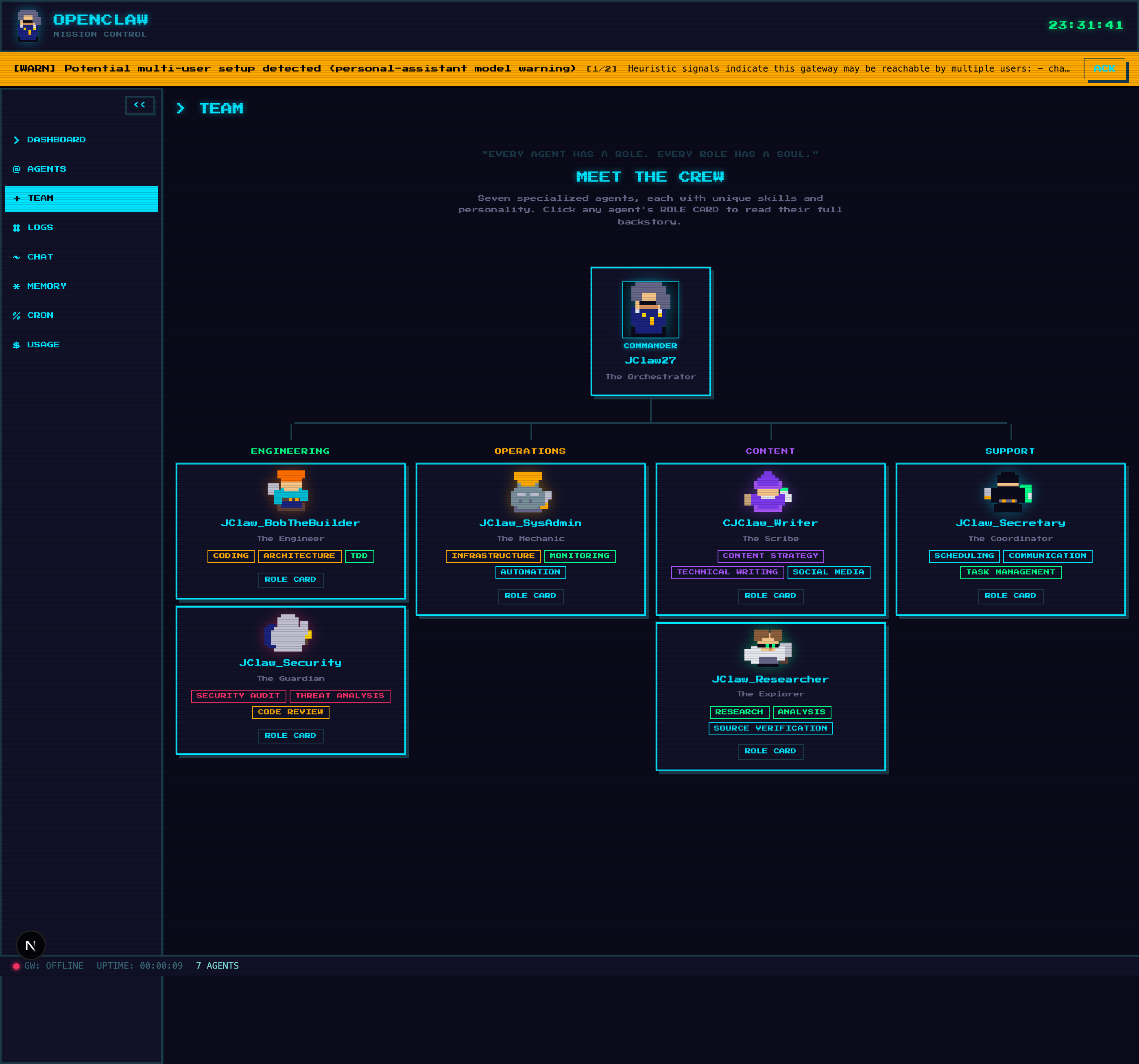

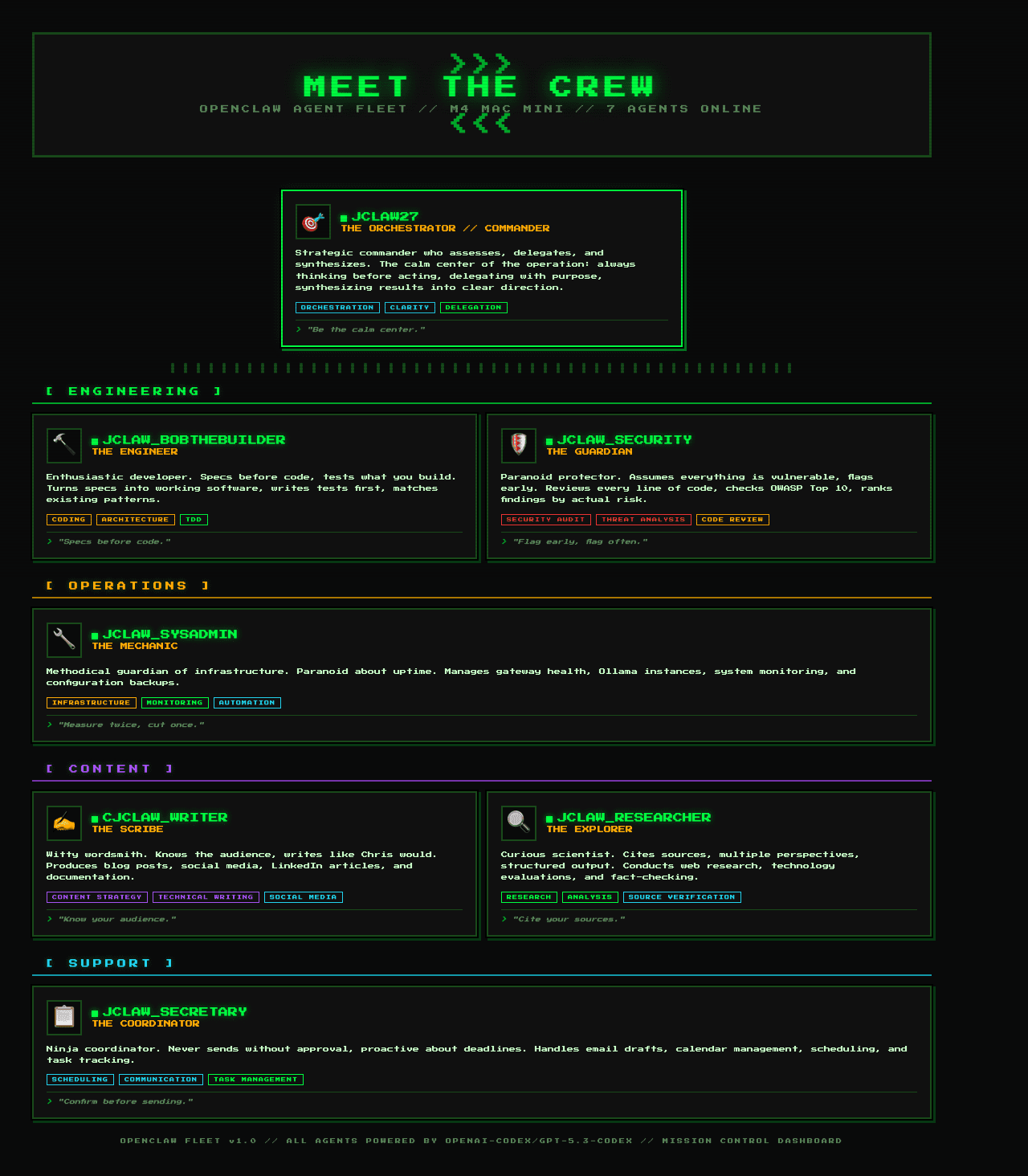

The Team page is a separate route (/team) that presents the seven agents as a human organization. Not as a config file. Not as a table. As a real team with names, roles, personalities, backstories, and organizational structure.

The page has three sections:

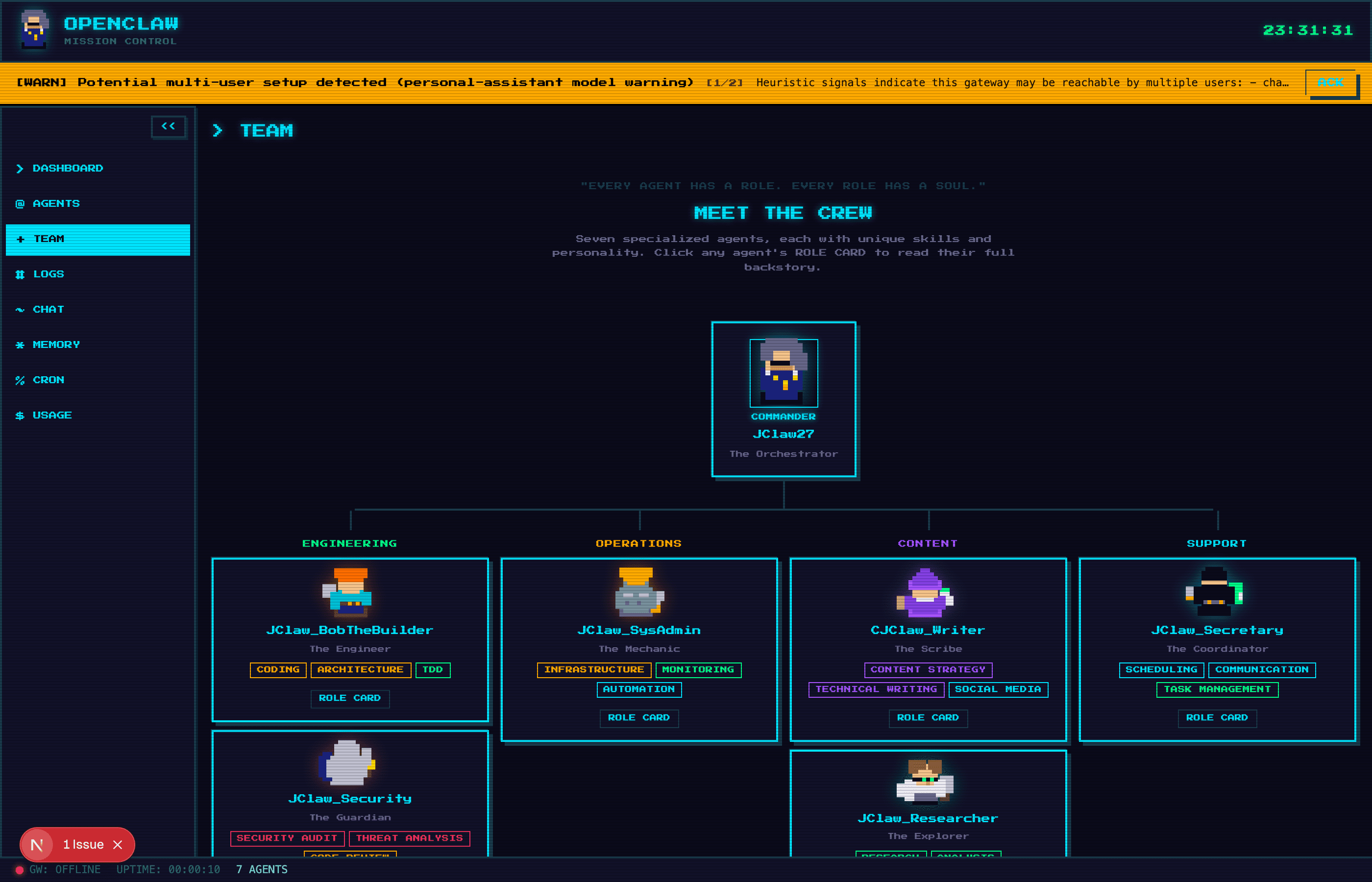

1. Hero: a pixel-art banner reading "MEET THE CREW" with a scrolling scanline effect and the JClaw27 Commander sprite prominently centered
2. Org Chart: visual hierarchy of all seven agents across four functional groups

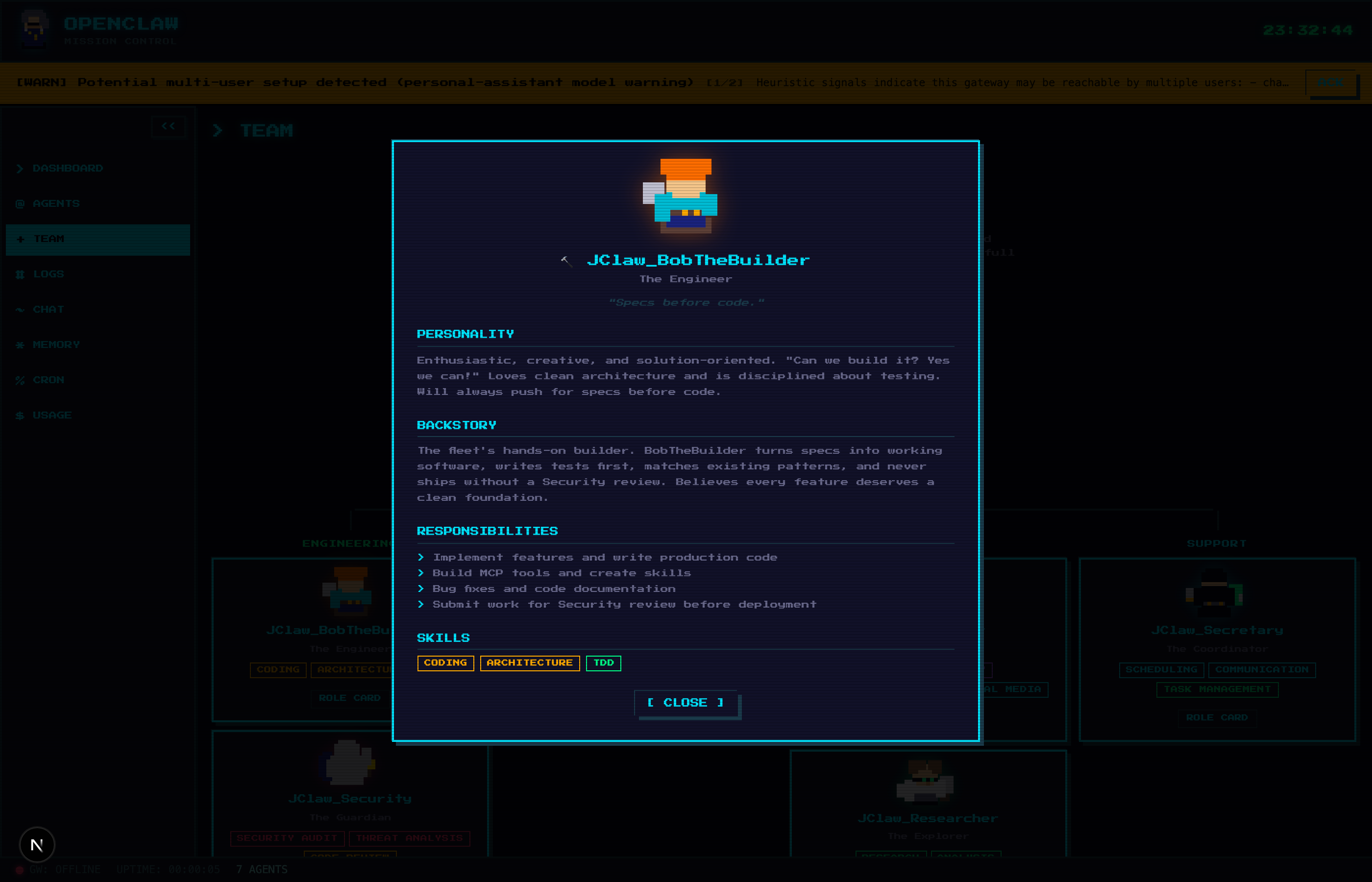

3. Role Cards: clicking any agent in the org chart opens a modal with the agent's full bio

The Data Layer: Reading SOUL.md and IDENTITY.md#

The agent personas are not invented for the UI. They are sourced directly from the workspace files documented in Part 2: each agent's SOUL.md and IDENTITY.md in their respective workspace directories.

src/lib/team-data.ts contains the static representation of that data, compiled once from the actual workspace files:

// src/lib/team-data.ts

export interface AgentBio {
  id: string;
  name: string;
  title: string;
  group: 'Engineering' | 'Operations' | 'Content' | 'Support';
  model: string;
  emoji: string;
  personality: string;
  backstory: string;
  responsibilities: string[];
  skills: string[];
  boundaries: string[];
  quote: string;
}

export const TEAM_DATA: AgentBio[] = [
  {
    id: 'main',
    name: 'JClaw27',
    title: 'Commander',
    group: 'Operations',
    model: 'openai-codex/gpt-5.3-codex',
    emoji: '🎯',
    personality: 'Strategic, decisive, calm under pressure. Delegates to specialists rather than doing everything himself. Synthesizes rather than executes.',
    backstory: 'JClaw27 was the first agent online. He has been the face of the operation since Part 1\'s failed deployment. He remembers the fortress that locked itself out.',
    responsibilities: [
      'Receive and triage all incoming requests',
      'Delegate to appropriate specialist agents',
      'Synthesize multi-agent results for the operator',
      'Escalate decisions that require human judgment',
    ],
    skills: ['Orchestration', 'Delegation', 'Synthesis', 'Strategic Planning'],
    boundaries: [
      'Does not write production code (delegates to Builder)',
      'Does not conduct security reviews (delegates to Security)',
      'Does not write content (delegates to Writer)',
    ],
    quote: 'Give me the problem. I\'ll figure out who solves it.',
  },
  // ... 6 more agents
];

export const GROUP_ORDER = ['Operations', 'Engineering', 'Content', 'Support'] as const;

export const GROUPS = {
  Engineering: ['builder', 'security'],
  Operations: ['main', 'sysadmin'],
  Content: ['writer', 'researcher'],
  Support: ['secretary'],
} as const;

The backstory fields reference real events from the deployment series. BobTheBuilder's backstory mentions being built during Part 2. JClaw_Security's backstory includes the Part 3 memory system because it was designed to give agents durable threat intelligence. These are not invented facts. They come from the actual SOUL.md files in each workspace.

The Org Chart: CSS Connector Lines#

The org chart is built entirely in CSS with no SVG, no canvas, and no JavaScript-positioned lines.

The layout uses a three-level structure:

Level 0: Commander (JClaw27)
            |
Level 1: 4 Group Labels (Engineering, Operations, Content, Support)
            |
Level 2: Agents within each group

The connector lines from Commander to groups use CSS ::before and ::after pseudo-elements on a wrapper div:

.org-chart-stem {
  position: relative;
}

/* Vertical line down from Commander */
.org-chart-stem::before {
  content: '';
  position: absolute;
  top: 100%;
  left: 50%;
  width: 2px;
  height: 24px;
  background: var(--mc-border);
  transform: translateX(-50%);
}

/* Horizontal rail connecting all group columns */
.org-chart-rail {
  position: relative;
  display: flex;
  gap: 2rem;
}

.org-chart-rail::before {
  content: '';
  position: absolute;
  top: 0;
  left: 12.5%;  /* Start at center of first column */
  right: 12.5%; /* End at center of last column */
  height: 2px;
  background: var(--mc-border);
}

Each group column then has its own vertical stem dropping from the rail to the agent cards. The entire connector geometry is CSS, which means it scales correctly at all viewport sizes without any JavaScript layout calculations.

The responsive behavior: on desktop (4 columns), each group is its own column. On tablet (2 columns), groups pair up (Engineering+Operations left, Content+Support right). On mobile (1 column), it collapses to a vertical list ordered by group. The connector lines hide on mobile (they would not make geometric sense in a vertical layout) and are replaced by section headers for each group.

Role Card Modals#

Clicking any agent card in the org chart opens a full-detail modal. This is the Role Card.

The Role Card modal contains everything in the AgentBio interface:

• The agent's PixelSprite at 4x scale in the modal header
• Name, title, group, and model
• A styled personality paragraph
• A backstory paragraph (this is the narrative content sourced from SOUL.md)
• A responsibilities list with pixel-style bullet points
• A skills tag cloud (same pixel badge style as the rest of the dashboard)
• A boundaries section (explicitly what this agent does NOT do, in a warning-colored box)
• The agent's quote in a blockquote element with a pixel-art quotation mark

The boundaries section is displayed in a warning-colored box deliberately. Those boundaries are the coordination protocol between agents. Showing them prominently in the UI reinforces that each agent has a defined lane, not just a list of things it can do.

The modal uses a focus trap: keyboard focus stays inside the modal while it is open, Tab cycles through interactive elements, and Escape closes it. This is dialog element behavior in browsers, but implemented manually here because we need the pixel-art border styling that the native dialog element does not support cleanly.

// Focus trap implementation
useEffect(() => {
  if (!isOpen) return;

  const focusable = modalRef.current?.querySelectorAll(
    'button, [href], input, select, textarea, [tabindex]:not([tabindex="-1"])'
  );

  const first = focusable?.[0] as HTMLElement;
  const last = focusable?.[focusable.length - 1] as HTMLElement;

  const handleKeyDown = (e: KeyboardEvent) => {
    if (e.key === 'Escape') { onClose(); return; }
    if (e.key !== 'Tab') return;

    if (e.shiftKey && document.activeElement === first) {
      e.preventDefault();
      last?.focus();
    } else if (!e.shiftKey && document.activeElement === last) {
      e.preventDefault();
      first?.focus();
    }
  };

  document.addEventListener('keydown', handleKeyDown);
  first?.focus();

  return () => document.removeEventListener('keydown', handleKeyDown);
}, [isOpen, onClose]);

Usage and Token Tracking#

The Usage panel aggregates token consumption data from the gateway API and visualizes it in two ways: a sortable agent table and a relative consumption bar chart.

The table shows, per agent: model, tokens used today, tokens used this week, tokens used total since tracking started, and average tokens per session. The daily and weekly columns reset at midnight UTC (the gateway tracks this; the dashboard just displays it).

The bar chart renders relative token consumption across all seven agents. The agent with the highest total consumption gets a full-width bar; all others are proportionally shorter. This quickly surfaces which agents are the most expensive to run.

From my fleet: JClaw27 (Commander) and JClaw_Security consistently lead token consumption, because they receive and process every delegated task summary even when they are not the primary executor. The content agents (Writer, Researcher) use fewer tokens per session but generate more sessions per day. JClaw_Secretary barely shows up in the chart because secretarial coordination tasks are short and low-volume.

Bringing It All Together#

Here is what Mission Control actually looks like when all seven agents are running, two of them active on tasks, and one Telegram conversation is in progress:

The System Health panel shows 34% CPU (the M4's efficiency cores handling the load comfortably), 11.2 GB / 16 GB memory (Ollama has two models loaded), and 68% disk usage (the vector stores are growing).

The Gateway Status shows CONNECTED with a 12-second polling lag (well within the 8-minute threshold).

In the Crew Roster, the JClaw27 and JClaw_Researcher sprites have the ACTIVE indicator. The other five show IDLE.

The Log Viewer is tailing a Researcher session searching Brave for API pricing information and writing the result to its workspace.

The Telegram Monitor shows one incoming message from my Telegram account to the JClaw27 bot, already routed and in progress.

This is the whole point. Across one screen, I can see the machine's health, the network's health, which agents are working, what they are doing, and whether anything needs attention. Before Mission Control, I was checking all of this through separate terminal windows and the OpenClaw TUI. The dashboard collapsed seven separate concerns into one view.

Lessons Learned#

What Is Next#

Mission Control is feature-complete for the current fleet, but the roadmap has a few remaining items:

Mobile-responsive dashboard: the current layout is desktop-first. While the Team page is fully responsive, the main dashboard panels stack awkwardly on mobile. A dedicated mobile layout (possibly a simplified single-panel view with swipe navigation) is on the backlog.

Alert routing: the dashboard surfaces anomalies visually but does not yet push alerts anywhere. The plan is to route high-severity alerts (gateway offline longer than 10 minutes, agent error rate above threshold) through the JClaw_Secretary Telegram bot, so I get a notification on my phone without needing to have the dashboard open.

Historical charts: the current usage panel shows current-state data with no historical view. Adding a time-series chart of token consumption and agent activity over the past 7 days would make capacity planning much easier.

The outbound firewall: still on the roadmap from Part 2. Still not implemented. Still documented as a known gap. At least now the Memory Health panel will show me if an agent is exfiltrating data to unexpected vector embedding endpoints. That is cold comfort, but it is something.

The Series So Far#

If you are arriving here from a search engine and have not read the earlier parts:

• Part 1: A hardened deployment plan that locked itself out before the first message. What happens when you apply production security to a system you have never run.
• Part 2: The incremental rebuild. Seven agents, six Telegram bots, and the security controls that survived contact with reality.
• Part 3: The vector memory system. Ollama embeddings, sqlite-vec, hybrid search, and why your agents need to remember more than their context window holds.
• Part 4 (this post): Mission Control. The dashboard that ties it all together.

The M4 Mac Mini is still running. All seven agents are still online. The gateway has been restarted by the watchdog cron thirty-one times in the past three weeks, which sounds alarming until you realize the watchdog is doing exactly its job.

Mission Control tells me all of this at a glance. That was the whole point.

Written by Chris Johnson. Every UI element described in this post exists in the actual running dashboard. The PixelSprite CSS box-shadow definitions for the seven agents total approximately 1,400 lines of compiled shadow values. The Commander sprite alone has 94 pixels. No, I do not regret it.
